Analytical Semi-Micro Balances – AND GH202

Category :
Analytical and Density Balance

Price :

Rp.74.900.000

Chat Us

DESCRIPTION
SPECIFICATION

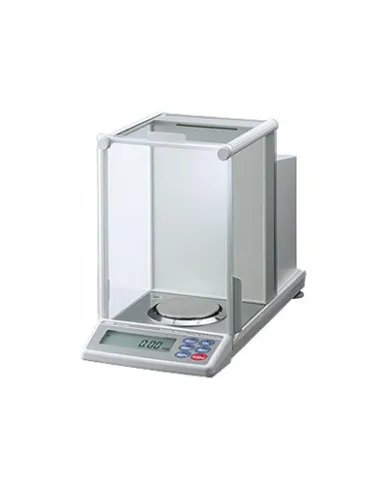

Experience the newest level of state of the art weighing technology incorporated in the GH Series Analytical Balance from A&D Weighing. Attention to the smallest detail was designed into this premiere analytical balance including anti-static glass. Everyone knows static electricity can cause havoc in your high precision weighing tasks, but almost all analytical manufacturer’s just use standard glass in their draftshield. The A&D GH Series is the only analytical balance we know on the market featuring specially coated glass that substantially lessens the effects of static electricity. Semi microbalance GH-202 is a dual range semi micro balance allowing weighing at different resolutions. When weighing samples up to 51 grams you have 0.01 milligram readability. Once the weight on the weighing pan exceeds 51 grams the resolution drops to 0.1mg. To sum it up from 0 – 51 grams the GH-202 increments in 0.01mg divisions, from 51 – 220 grams the GH-202 increments in 0.1mg division

Weighing Capacity : 220 g / 51 g
Resolution : 0.1 mg / 0.01 mg
Repeatability (Std. Deviation) : 0.1 mg / 0.02 mg
Grams (g) : 220 x 0.0001 / 51 x 0.00001
Decimal ounces (oz) : 7.76 x 0.00001 / 1.80 x 0.000001
Troy ounce (ozt) : 7.07 x 0.00001 / 1.64 x 0.000001
Pennyweight (dwt) : 141.5 x 0.0001 / 32.8 x 0.00001
Carat (ct) : 1100 x 0.001 / 255 x 0.001
Grains (GN) : 3395 x 0.002 / 787 x 0.0002
Tola (t) : 18.86 x 0.00001 / 4.37 x 0.000001
Linearity : ± 0.2 mg / 0.03 mg
Stabilization Time : 3.5 seconds / 8 seconds
Sensitivity Drift (10° C-30° C/50° F-86° F) : ± 2 ppm / °C (when automatic self calibration is not used)
Operating Temperature : 5° C to 40 ° C (41° F to 104° F), 85% RH or less
Sensing Method : Flexure Bearing Magnetic Force Motor
Display Type : LCD
Display Refresh rates : 5 times/second or 10 times/second
Weighing units and modes : g, mg, oz, ozt, dwt, ct, gn, mm, TL, Ms, t, and percent % and counting PCS
Standard Serial I/F : S-232C interface with Windows Communication Tools ( WinCT : included as CD-ROM )
Weighing Pan : Ø90mm
Poweer : Confirm that the adapter type is correct for the local voltage and power receptacle ( Approx. 11VA )
External Dimension : 217(W) x 442(D) x 316(H)mm
Weight : Approx. 8.2 kg
