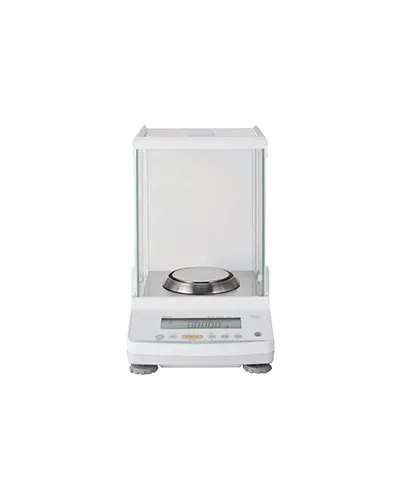

UniBloc Analytical Balances – Shimadzu ATX324

Category :
Analytical and Density Balance

Price :

Rp.28.600.000

Chat Us

DESCRIPTION
SPECIFICATION

UniBloc Analytical Balances ATX324: 320 g capacity. The ATX/ATY series incorporates a one-piece aluminum alloy mass sensor technology (UniBloc), first introduced by Shimadzu for precision balances in 1989. It excels in performance, and resists deterioration and damage by ordinary impacts. The UniBloc’s compact, uniform structure replaces 70 parts found in a conventional electromagnetic balance sensor assembly and ensures stable temperature characteristics, excellent response time and stable corner-load performance. The UniBloc design permits a consistency of production that assures reliability and a long operational life

Capacity : 320g
Minimum Display : 0.1mg
Repeatability (Standard Deviation) : ≤0.1mg Linearity : ± 0.2mg
Stabilisation Time : Approx. 3.0 seconds
Operating Temperature and Humidity Limits : 5-40˚C 20-85% Temperature Coefficient for Sensitivity (10-30˚C) : ± 2 ppm/ ˚C Pan Size (mm) approx : ø91
Power Requirement : 12V, 1A Internal Calibration : Yes
Main Body Dimensions (mm) approx : 213(W) × 356(D) × 338(H)
Main Body Weight (kg) approx : 6.2
