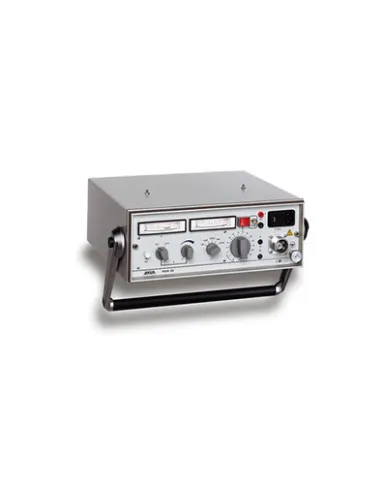

DC Cable Tester - Baur PGK25

Category :
Cable Diagnostic Tester

Price :

Rp.123

Chat Us

DESCRIPTION
SPECIFICATION

The portable PGK 25 DC HV tester is used for DC voltage testing up to 25 kV of paper-insulated mass-impregnated cables and electrical equipment in the medium-voltage network. The PGK 25 is characterised by its low weight of only 16.5 kg, by its easy operation and by its solid construction for onsite use. The device can be operated via the mains, an integrated rechargeable battery or an external power supply and is therefore suitable for universal use

DC voltage (negative) : 0 – 5 Kv, 0 – 25 kV
Output current (negative) : 1 mA
Short-circuit current (negative) : 3 mA
Voltage measuring range :
Range I : 0 – 5 kV
Range II : 0 – 25 kV
Current measuring range : 50 nA to 1 μA / 10 μA / 100 μA /1 mA / 10 mA
Max. discharge energy :
For 1 discharge/10 min : 3 000 J, 9.6 μF / 25 kV
For 1 discharge/20 min : 5 000 J, 16 μF / 25 kV
Battery type : Lead-acid battery DC 12 V, 6.5 Ah (maintenance free)
Battery life : Approx. 30 min at 2/3 load
Charging time : Approx. 24 h
Power consumption : 110 VA
Ambient temperature (operational) : 0°C to +45°C
Storage temperature : -20°C to +60°C
Relative humidity : Non-condensing
Dimensions (W x H x D) : Approx. 415 x 140 x 360 mm
Weight : Approx. 16.5 kg
