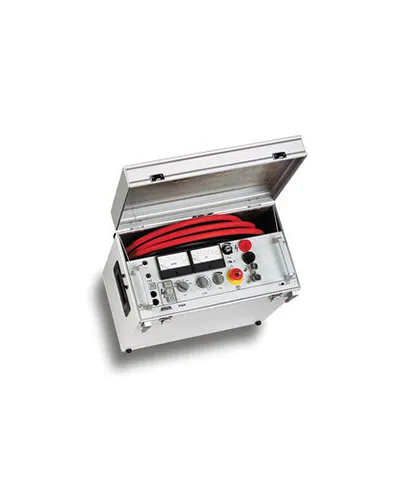

DC Cable Tester - Baur PGK50E

Category :
Cable Diagnostic Tester

Price :

Rp.123

Chat Us

DESCRIPTION
SPECIFICATION

The portable, one-piece PGK 50 high-voltage test device for generating negative DC voltage up to 50 kV is primarily used for onsite testing of paper-insulated mass-impregnated cables in the medium-voltage network. The high voltage is generated through a high-voltage transformer with secondary voltage-multiplier. The internal operating frequency of 20 kHz enables the smallest of device dimensions

DC voltage (negative) : 0 – 50 kV
Output current (negative) : 2 mA @ 50 kV
Short-circuit current (negative) : 25 mA
Voltage measuring range :
Range I : 0 – 50 kV
Range II : 0 – 10 kV
Current measuring range : 20 nA to 1 μA / 10 μA / 100 μA / 1 mA / 10 mA / 100 mA
Accuracy of the voltmeter (kV) : ±2.5%
Timer : 0 – 30 min
Max. discharge energy : 8 000 J at 1 discharge/15 min (ambient temperature 20°C)
Battery type : Lead-acid battery DC 12 V, 6.5 Ah (maintenance free)
Battery life : Approx. 30 min at 2/3 load
Charging time : Approx. 24 h
Power consumption : 110 VA
Ambient temperature (operational) : 0°C to +45°C
Storage temperature : -20°C to +60°C
Relative humidity : Non-condensing
Dimensions (W x H x D) : Approx. 495 x 460 x 285 mm
Weight : Approx. 25 kg
