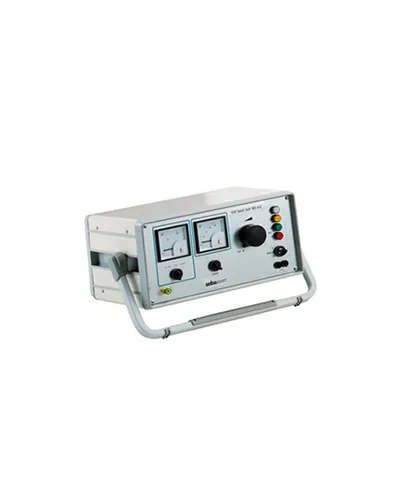

The HV Test Set is a cable tester for DC voltage testing of cables and cable installations in accordance with the international standards. It consists of an operation unit and HV unit. Due to its small size and low weight the test sets can easily be transported and used on-site
DC output voltage / Voltage measuring range : 0 … 50 kV Output current at max. output voltage : 6 mA Overcurrent trip : > 8 mA Current measuring range : 0.1 mA / 1 mA / 10 mA Power supply : 230 V AC, 50 Hz Power consumption approx. : 0.9 kVA Operating temperature range : -25 °C … +55 °C Storage temperature range : -40 °C … +70 °C Weight (Operation Unit / HV Unit) : appr. 13 kg / appr. 17.0 kg Dimensions (W x H x D) : 400 x 335 x 200 mm /214 x 460 x 236 mm
