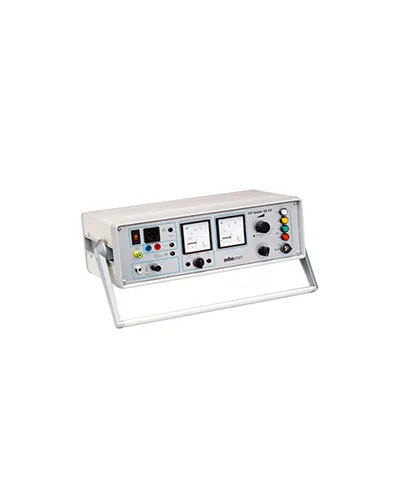

DC Cable Tester – Megger HV Tester 25

Category :
Cable Diagnostic Tester

Price :

Rp.123

Chat Us

DESCRIPTION
SPECIFICATION

The HV Tester 25 kV is a high-voltage generator with a variable negative DC output voltage of 0 - 25 kV. The condition of the test object with regard to electrical strength and insulation quality can be determined on the basis of the unit's readings for output voltage and current. Due to its small size and internal battery this test-system is ideal for test-conditions where no external power supply is available

Power supply (selectable) : Mains 115 V/ 230 V; 50 / 60 Hz (115 V), internal rechargeable battery, external battery 11 … 15 V
DC output voltage : 0 … 25 kV DC, negative polarity
Rated output current : 1.5 mA at max. output voltage
Operating time rechargeable : ca. 45 min
Max. discharge energy : 3,000 J
Voltage measuring range : 0 … 30 kV
Current measuring ranges : 0 … 0.2 mA and 0 … 2 mA
Operating temperature range : -25 °C … +55 °C
Storage temperature range : -40 °C … +70 °C
Dimensions (W x H x D) : 467 x 168 x 284 mm
Weight : approx. 13.5 kg (incl. batteries)
