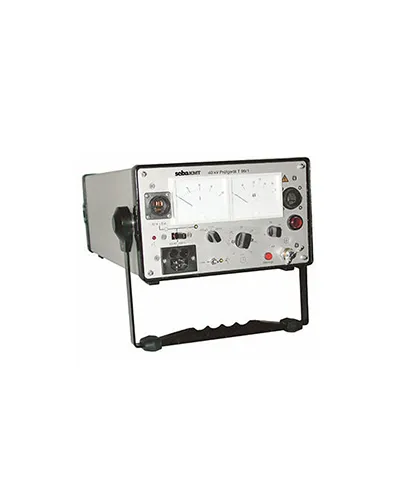

DC Cable Tester – Megger T99/1

Category :
Cable Diagnostic Tester

Price :

Rp.123

Chat Us

DESCRIPTION
SPECIFICATION

The high voltage test unit T99/1 is a portable and powerful test device able to generate a DC voltage of up to 40 kV. The T 99/1 is used for testing of cables, cable accessories, plant and installations. Because of the short-circuit proof design and high output current of the T 99/1, this is device is also suitable for cable fault location (in conjunction with a TDR unit)

No-load voltage : 40 kV DC
Short-circuit current : approx. 15 mA
Overcurrent trip : at 2 mA (can be deactivated)
Current at 35 kV : 2.5 mA
Power supply : Mains 230 V AC ± 10 %, External battery 12 V DC
Max. discharge capacity : 10 µF
Power consumption : approx. 220 VA
Dimensions (B x H x T) : 260 x 160 x 400 mm
Weight : approx. 15 kg
