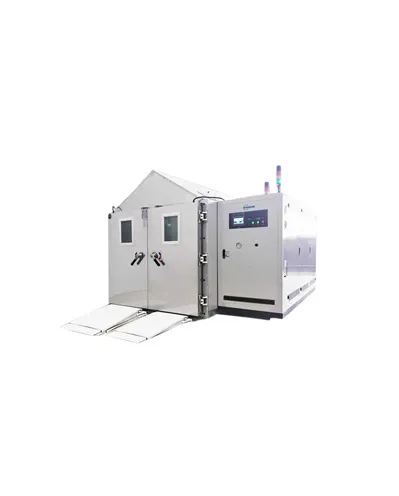

In the Temperature Humidity Salt Spray Corrosion Test Chamber, the samples will undergo cyclic tests that simulate different outdoor natural environments. Simple cycle tests, such as the Prohesion cycle test, only need to cycle tests under salt spray and dry conditions. More complex automotive cyclic corrosion tests require multi-step cycles, including moisture or condensation, salt spray, and dry environments.
Spesifikasi: Model: SSC/120(TH) SSC/200(TH) SSC/1800(TH) SSC/8000(TH) Volume: 480L 1440L 1800L 8000L Internal Dimension W*H*D(mm): 1200x850x500 2000x1200x600 1800x1000x1000 2000x2000x3200 External Dimension W*H*D(mm): 2200x1200x1450 3000x1650x1600 2800x1450x2150 3200x2350x2800 Temperature Control Range: -20℃~80℃ ( A: 25℃; B: 0℃; C: -20℃ ) -70℃~180℃ -40℃~80℃ Humidity range: 20%RH~98%RH Brine solubility : 5% Sodium Chloride Solution or add 0.26 grams copper dichloride in the 5% Sodium Chloride Solution per liter (CuCl2 2H2O) Spraying amount: 1.0~2.0ml/80cm2/h (Collect 16 hours at least, take their average)
SONACME rain test chambers IPX12 is used to test the waterproof performance of the product shell by simulating the natural dripping environment. Suitable for electronic components, outdoor lamps, auto parts and other industries, according to the different specifications of the product to choose the appropriate drip board size, and the model of the drip tester.
SONACME rain test chamber ipx34 is used to test the IPX3 and IPX4 waterproof grades of the products. The test samples include electronic components, outdoor lamps, mobile phone shells, auto parts, etc. Touch screen, new operating system, more remote operation, convenient and fast. Comply with IEC60529:1989+A1:1999 +A2:2013 "Degrees of protection provided by enclosures(IP Code)" test standard.
SONACME rain test chamber ipx34/56/9k is used to test the IPX3\IPX4\IPX5\IPX6\IPX9k waterproof grades of the products. The test samples include electronic components, outdoor lamps, mobile phone shells, auto parts, etc. Touch screen, new operating system, more remote operation, convenient and fast. Comply with IEC60529:1989+A1:1999 +A2:2013 "Degrees of protection provided by enclosures(IP Code)" test standard.
