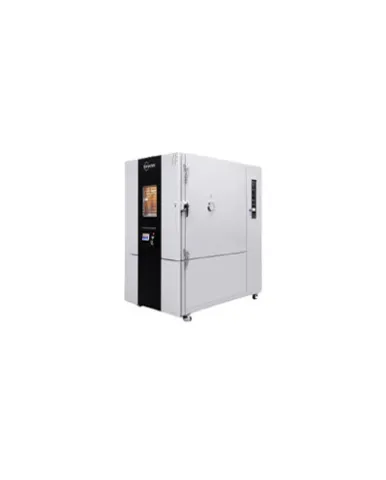

Sonacme Technology's Environmental Battery Test Chambers is an ideal choice for battery and battery module testing. These temperature test chambers are available with or without humidity. In order to test its reliability, our battery explosion-proof test chamber tests lithium batteries under various test conditions, such as low or high temperature, rapid temperature changes, and humidity.
Spesifikasi: Model: ST/64/70/EP ST/180/70/EP ST/340/70/EP ST/600/70/EP ST/1000/70/EP Volume : 64L 180L 340L 600L 1000l Internal dimensions W×H×Dmm: 400*400*400 580*750*450 750*750*600 800*950*800 1000*1000*1000 External dimension W×H×Dmm: 640*1688*1305 780*1800*1570 950*1800*1885 1115*2000*1930 1200*2050*1780 Temperature range: -70~+100℃ (+150℃/+180℃) Temperature fluctuation : ±0.3°C Temperature deviation: 1.5°C Temperature change rate:Heating rate:3.0°C/min Cooling rate:2.0°C/min Standard configuration: Explosion-proof chain, Status indicator, Safety door lock, Independent over-temperature protector, Emergency stop, Refrigeration systems pressure gauge , Customised controller,Cable port x 2, Ethernet interface Security options: Sample surface temperature probe, Explosion-proof pressure relief port, Water sprinkler, CO2 fire extinguishing device, Electronic combination lock, Explosion-proof mesh for observation window, Gas monitoring system (H2/CO) GN2 purge, Fireproof coating, Video monitoring
SONACME rain test chambers IPX12 is used to test the waterproof performance of the product shell by simulating the natural dripping environment. Suitable for electronic components, outdoor lamps, auto parts and other industries, according to the different specifications of the product to choose the appropriate drip board size, and the model of the drip tester.
SONACME rain test chamber ipx34 is used to test the IPX3 and IPX4 waterproof grades of the products. The test samples include electronic components, outdoor lamps, mobile phone shells, auto parts, etc. Touch screen, new operating system, more remote operation, convenient and fast. Comply with IEC60529:1989+A1:1999 +A2:2013 "Degrees of protection provided by enclosures(IP Code)" test standard.
SONACME rain test chamber ipx34/56/9k is used to test the IPX3\IPX4\IPX5\IPX6\IPX9k waterproof grades of the products. The test samples include electronic components, outdoor lamps, mobile phone shells, auto parts, etc. Touch screen, new operating system, more remote operation, convenient and fast. Comply with IEC60529:1989+A1:1999 +A2:2013 "Degrees of protection provided by enclosures(IP Code)" test standard.
