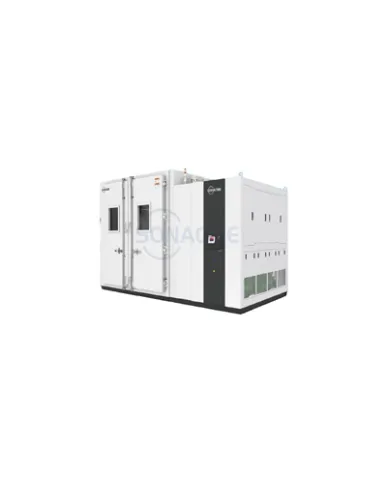

SONACME walk-in battery test chamber is very suitable for testing large electric vehicle battery packs. We understand that energy storage systems must be as safe as possible. External loads caused by high or low temperatures, rapid temperature changes, humidity, mechanical loads, or the effects of corrosion must be safe and will not cause malfunctions or unexpected reactions.
Spesifikasi: Model: SWT/08/70/EP ST/180/70/EP SWT/18/70/EP SWT/24/70/EP Volume : 8m³ 12m³ 18m³ 24m³ Internal dimensions W×H×Dmm: 2000*2000*2000 2000*2000*3000 3000*2000*3000 3000*2000*4000 External dimension W×H×Dmm: 4000*2350*2650 4000*2350*3650 5000*2350*3650 5000*2350*4850 Temperature range: -70~+100℃ (+150℃/+180℃) Temperature fluctuation : ±0.5°C Temperature deviation: 1.5°C Temperature change rate: Heating rate:3.0°C/min Cooling rate:2.0°C/min Standard configuration Explosion-proof chain, Status indicator, Safety door lock, Independent over-temperature protector, Emergency stop, Refrigeration systems pressure gauge , Customised controller,Cable port x 2, Ethernet interface Security options: Sample surface temperature probe, Explosion-proof pressure relief port, Water sprinkler, CO2 fire extinguishing device, Electronic combination lock, Explosion-proof mesh for observation window, Gas monitoring system (H2/CO) GN2 purge, Fireproof coating, Video monitoring
SONACME rain test chambers IPX12 is used to test the waterproof performance of the product shell by simulating the natural dripping environment. Suitable for electronic components, outdoor lamps, auto parts and other industries, according to the different specifications of the product to choose the appropriate drip board size, and the model of the drip tester.
SONACME rain test chamber ipx34 is used to test the IPX3 and IPX4 waterproof grades of the products. The test samples include electronic components, outdoor lamps, mobile phone shells, auto parts, etc. Touch screen, new operating system, more remote operation, convenient and fast. Comply with IEC60529:1989+A1:1999 +A2:2013 "Degrees of protection provided by enclosures(IP Code)" test standard.
SONACME rain test chamber ipx34/56/9k is used to test the IPX3\IPX4\IPX5\IPX6\IPX9k waterproof grades of the products. The test samples include electronic components, outdoor lamps, mobile phone shells, auto parts, etc. Touch screen, new operating system, more remote operation, convenient and fast. Comply with IEC60529:1989+A1:1999 +A2:2013 "Degrees of protection provided by enclosures(IP Code)" test standard.
