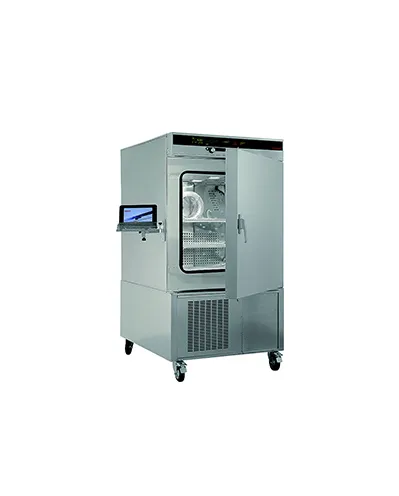

Environmental Test Chambers – Memmert CTC256

Category :
Climate Chamber

Price :

Rp.598.700.000

Chat Us

DESCRIPTION
SPECIFICATION

Memmert environmental test chambers CTC and TTC, the perfect atmosphere for climate and temperature tests, specifically in accordance with IEC 60068 are simulated. Ramp operation, active humidification and dehumidification of 10 to 98 % rh and precise temperature control from -42 °C to +190 °C (without humidity) with humidity control from +10 °C to +95 °C provide unlimited flexibility for controlled material and function tests as well as ageing tests. Within the respective temperature-humidity range, condensation-free permanent operation is possible. To which extent condensation may occur in the threshold range depends on the humidity content of the chamber load and the ambient conditions

Temperature range : from -42°C up to +190°C
Setting accuracy temperature : up to 99.9 °C: 0.1 / from 100 °C: 0.5
Temperature distribution (spatial) : +/- 0.5 up to 2K
Temperature sensor : 2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error
Display : resolution of display for setpoint values 0.1°C up to 99.9°C, 0.5°C from 100°C and for actual values 0.1°C (LED)
Calibration : three freely selectable temperature values
Controller : Electronic microprocessor temperature controller with auto-diagnostic system
Timer : integrated timer for tempering profiles of up to 40 ramps each, each segment adjustable from 1 min. to 999 hrs
Fan : high-performance air fan in working chamber
Interface USB : USB-interface incl. Memmert software "Celsius" for programming and documentation
Interface Printer : parallel printer interface (incl. real time clock with date function) for all PCL3-compatible ink jet printers for GLP-conforming documentation
Documentation : integrated ring memory as data logger for GLP-conforming long-term documentation of all relevant parameters - 1024 kB
Works calibration certificate : standard values -20 °C and +160 °C
Entry port : Entry port right, 80 mm, with stopper
Internals : 1 stainless steel grid(s), electropolished
Door : fully insulated stainless steel door with double-locking and 4-point adjustment, heated
Interior : easy-to-clean stainless steel interior, materil 1.4301 (ASTM 304), hermetically welded
Volume : 256 l
Dimensions approx incl. carton : w x h x d: 1020 x 1910 x 1310 mm
Gross weight carton : approx. 463 kg
