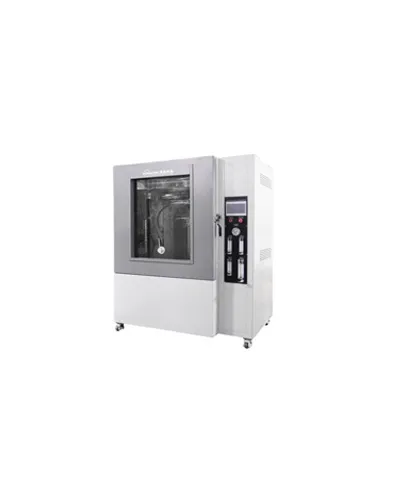

High Pressure Water Spray Test chamber IPx9K is suitable for the IPX9K waterproof level test of the product. The main function of this equipment is for passenger cars, buses, tractors, motorcycles and other vehicles and their parts, under the cleaning process conditions of high pressure/steam jet cleaning , To test the physical and other related properties of the product.
Spesifikasi: Model: SR/IPX9K/1000 Testing room size (W*H*D mm): 1000*1080*1050 External size (W*H*D mm): 1500*1950*1250 Test bench area : 400mm Water surface temperature: 80±5.0℃ Flow: 14~16L/min Pressure: 8000~10000kpa Angle: The nozzles are distributed at 0°, 30°, 60°, 90°counter clockwise Rotating speed: 1~20r/min can also be used for speed regulation without joints Water pressure control Electromagnetic flowmeter Power supply: AC380V TN-S
SONACME rain test chambers IPX12 is used to test the waterproof performance of the product shell by simulating the natural dripping environment. Suitable for electronic components, outdoor lamps, auto parts and other industries, according to the different specifications of the product to choose the appropriate drip board size, and the model of the drip tester.
SONACME rain test chamber ipx34 is used to test the IPX3 and IPX4 waterproof grades of the products. The test samples include electronic components, outdoor lamps, mobile phone shells, auto parts, etc. Touch screen, new operating system, more remote operation, convenient and fast. Comply with IEC60529:1989+A1:1999 +A2:2013 "Degrees of protection provided by enclosures(IP Code)" test standard.
SONACME rain test chamber ipx34/56/9k is used to test the IPX3\IPX4\IPX5\IPX6\IPX9k waterproof grades of the products. The test samples include electronic components, outdoor lamps, mobile phone shells, auto parts, etc. Touch screen, new operating system, more remote operation, convenient and fast. Comply with IEC60529:1989+A1:1999 +A2:2013 "Degrees of protection provided by enclosures(IP Code)" test standard.
