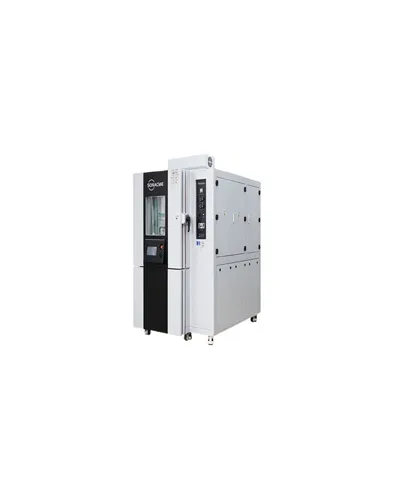

Sonacme Temperature Test Chambers can set different stress screening temperature change rates: 5℃/Min, 10℃/Min, 15℃/Min, 20℃/Min, 25℃/Min. Temperature cycling stress screening is the use of temperature acceleration techniques (cycle within the upper and lower limit temperature, the product produces alternating expansion and contraction) under the design strength limit of the product to change the external environmental stress.
Spesifikasi: Model: SR/340/70/25(H) SR/600/70/25(H) SR/1000/70/25(H) Volume : 340L 600L 1000L Inner dimension W×H×Dmm: 750*750*600 800*950*800 1000*1000*1000 External dimension W×H×Dmm: 1100*1800*1980 1250*2000*2250 1450*2050*2450 Temperature range: -70~+180℃ Temperature change rates: 5℃/Min, 10℃/Min, 15℃/Min, 20℃/Min, 25℃/Min Temperature fluctuation: ±0.3°C Temperatrue uniformity: 1.5°C Space temperature change: −70 to +150℃: 1.5K, +150.1 to +180℃: 2.0K Humidity range: 10 to 98%rh Temperature fluctuation: ±2.5%rh Test area load-bearing capacity: 50KG 100KG
SONACME rain test chambers IPX12 is used to test the waterproof performance of the product shell by simulating the natural dripping environment. Suitable for electronic components, outdoor lamps, auto parts and other industries, according to the different specifications of the product to choose the appropriate drip board size, and the model of the drip tester.
SONACME rain test chamber ipx34 is used to test the IPX3 and IPX4 waterproof grades of the products. The test samples include electronic components, outdoor lamps, mobile phone shells, auto parts, etc. Touch screen, new operating system, more remote operation, convenient and fast. Comply with IEC60529:1989+A1:1999 +A2:2013 "Degrees of protection provided by enclosures(IP Code)" test standard.
SONACME rain test chamber ipx34/56/9k is used to test the IPX3\IPX4\IPX5\IPX6\IPX9k waterproof grades of the products. The test samples include electronic components, outdoor lamps, mobile phone shells, auto parts, etc. Touch screen, new operating system, more remote operation, convenient and fast. Comply with IEC60529:1989+A1:1999 +A2:2013 "Degrees of protection provided by enclosures(IP Code)" test standard.
