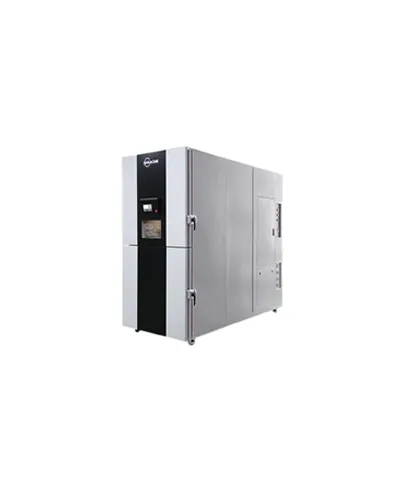

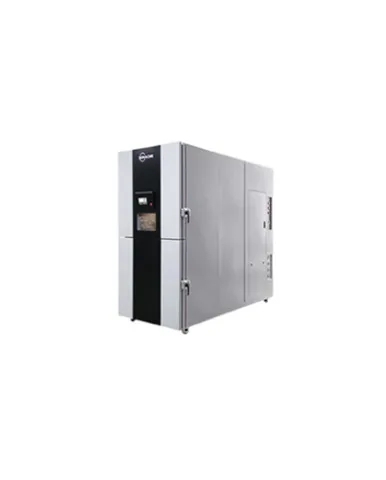

Thermal Shock Chambers - SONACME Two Zone Thermal Shock Test Chamber

Category :
Climate Chamber

Price :

Rp.123

Chat Us

DESCRIPTION
SPECIFICATION

SONACME Two Zone Thermal Shock Test Chamber is ideal for testing IC chips and small electronic products. The design consists of two independently controlled chambers. One room is hot, the other is cold. Products are quickly transferred between the hot and cold chambers, which will cause temperature shocks to the samples to help find product defects in electronic components and product assembly.

Spesifikasi:
Model:
SS/50/65/2 SS/100/65/2 SS/200/65/2 SS/300/65/2 SS/500/65/2 SS/1000/65/2
Volume : 50L 100L 200L 300L 500L 1000L
Internal dimension W×H×Dmm:
350*400*350 450*500*450 650*460*670 960*460*670 960*650*800 1100*900*1000
External dimension W×H×Dmm:
965*2010*1524 1050*2050*1650 1300*2050*1900 1700*2050*1900
1700*2350*2150 2000*2550*2400
High Temperature Range: +60 to +200°C
Low Temperature Range: A: –40 to 0°C, B: –55 to 0°C, C: –65 to 0°C
Test Area Load Capacity : 30KG 50KG 100KG
System : Test by moving and switching the basket
