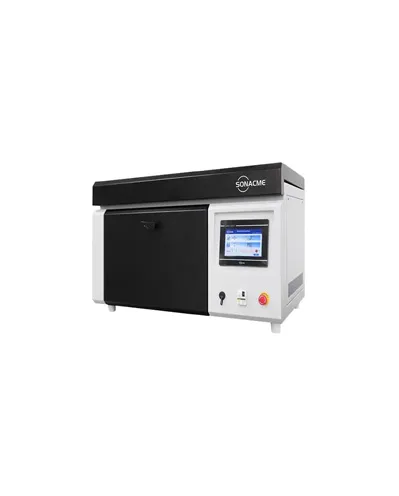

The Bench-top Xenon lamp aging test chamber is a small, simple and economical xenon lamp aging test chamber. It uses a low-power air-cooled xenon lamp and a mirror reflection system to ensure that the radiation energy in the working room is large enough and evenly distributed . It is equipped with an ultraviolet extension filter as standard, which allows ultraviolet light below the cut-off point of natural sunlight to pass (equivalent to sunlight without the atmosphere), which is used to provide faster and more severe test conditions for accelerated aging in artificial climate test.
Spesifikasi: Model: SX/1000 Light Source: 1.8kW original imported air-cooled xenon lamp or 1.8KW domestic xenon lamp Filter: UV extension filter (also available as daylight filter or window glass filter) Effective Exposure Area: 1000cm²(9 samples of 150mm×70mm can be put in at one time) Lamp Rated Life: 1500h Irradiance Setting Range: 30W/m²~100W/m²(300nm~400nm)or 0.3 W/m²~0.8 W/m²(@ 340nm)or 0.5 W/m²~1.5 W/m²(@ 420nm) Irradiance Monitoring Method: 340nm or 420nm or 300nm~400nm (Choose one before ordering) External Dimensions: 950mm×570mm×540mm(length x width x height)
SONACME rain test chambers IPX12 is used to test the waterproof performance of the product shell by simulating the natural dripping environment. Suitable for electronic components, outdoor lamps, auto parts and other industries, according to the different specifications of the product to choose the appropriate drip board size, and the model of the drip tester.
SONACME rain test chamber ipx34 is used to test the IPX3 and IPX4 waterproof grades of the products. The test samples include electronic components, outdoor lamps, mobile phone shells, auto parts, etc. Touch screen, new operating system, more remote operation, convenient and fast. Comply with IEC60529:1989+A1:1999 +A2:2013 "Degrees of protection provided by enclosures(IP Code)" test standard.
SONACME rain test chamber ipx34/56/9k is used to test the IPX3\IPX4\IPX5\IPX6\IPX9k waterproof grades of the products. The test samples include electronic components, outdoor lamps, mobile phone shells, auto parts, etc. Touch screen, new operating system, more remote operation, convenient and fast. Comply with IEC60529:1989+A1:1999 +A2:2013 "Degrees of protection provided by enclosures(IP Code)" test standard.
