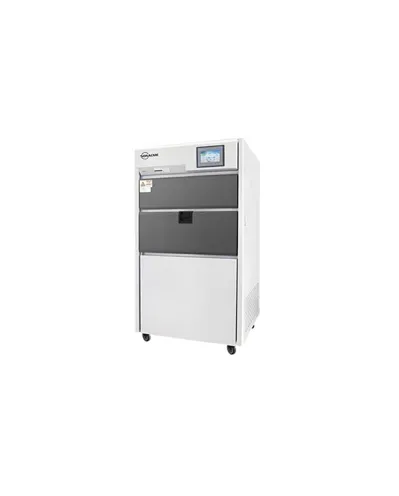

SONACME Xenon test chamber equipped with three xenon lamps imported from Amercia and daylight filter,can meet with all standards'requirements. The Xenon Test Chamber can hold 27 pieces samples, not only has spray function ,but also can control the relative humidity of working room.
Spesifikasi: Model: SX/2800/H Light Source: Three 1.8KW air-cooled xenon lamps imported from the United States Lamp Rated Life : Normal service life is about 3000 hours Filter: Daylight filter (window glass filter or UV extension filter also available) Effective Exposure Area: 2800cm2 (25 samples of 150mm×70mm can be put in at one time) Irradiance Monitoring Method: 340nm or 420nm or 300nm~400nm(show at the same time) Irradiance Setting Range: 30W/m2~90W/m2(300nm~400nm)or 0.3 W/m2~0.75 W/m2(@ 340nm)or 0.5 W/m2~1.35 W/m2(@ 420nm) External Dimensions: 970mm×920mm×1850mm(length x width x height) The maximum power of the whole machine: 6 KW
SONACME rain test chambers IPX12 is used to test the waterproof performance of the product shell by simulating the natural dripping environment. Suitable for electronic components, outdoor lamps, auto parts and other industries, according to the different specifications of the product to choose the appropriate drip board size, and the model of the drip tester.
SONACME rain test chamber ipx34 is used to test the IPX3 and IPX4 waterproof grades of the products. The test samples include electronic components, outdoor lamps, mobile phone shells, auto parts, etc. Touch screen, new operating system, more remote operation, convenient and fast. Comply with IEC60529:1989+A1:1999 +A2:2013 "Degrees of protection provided by enclosures(IP Code)" test standard.
SONACME rain test chamber ipx34/56/9k is used to test the IPX3\IPX4\IPX5\IPX6\IPX9k waterproof grades of the products. The test samples include electronic components, outdoor lamps, mobile phone shells, auto parts, etc. Touch screen, new operating system, more remote operation, convenient and fast. Comply with IEC60529:1989+A1:1999 +A2:2013 "Degrees of protection provided by enclosures(IP Code)" test standard.
