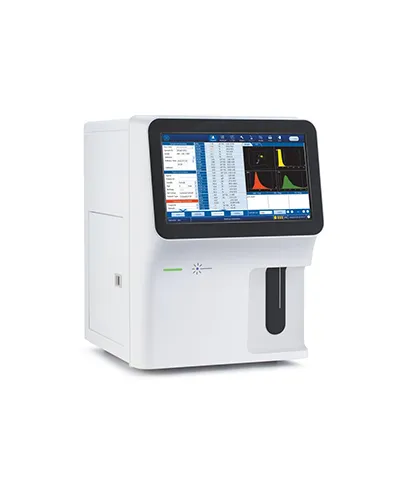

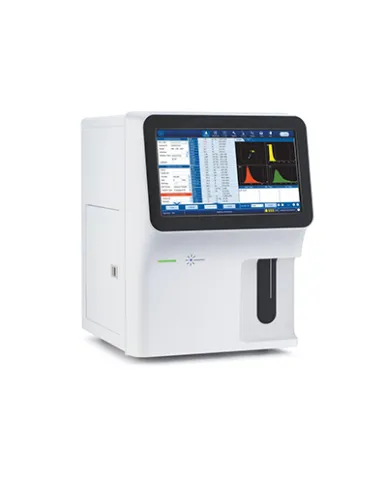

AC610 is a automatic 5-part hematology analyzer with compact size and advanced design targeting the small and middle size diagnostic labs, hospitals and clinics market, with lower running cost, more user-friendly operation and cost effective budget.
Principles : Tri-angle Laser scatter Flow Cytometry method 3D Scattergram analysis Impedance method for RBC and PLT counting Cyanide free reagent for HGB test Parameters : WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS# 1 3D Scattergram 3 Histograms(WBC/BASO, RBC, PLT) 4 Research parameter : ALY%, ALY#, LIC%, LIC# Test Mode : CBC mode, CBC+DIFF mode Venous whole blood,Capillary whole blood and Prediluted Throughput : 60 tests/hour Sample Volume : CBC+DIFF mode:≤20ul & CBC mode:≤10ul Data Memory : Up to 100,000 results(including histogram, scarttergram, patient information) Display : 14 inch touch screen, resolution 1366*768 Interface : 1 LAN port, 4 USB ports Communication : Support HL7 protocal/LIS & Internal RFID reader Printout : Support various external USB printers, printout formats user definable Size : L * W * H = 480*375*517(mm) Weight : 36 kg
