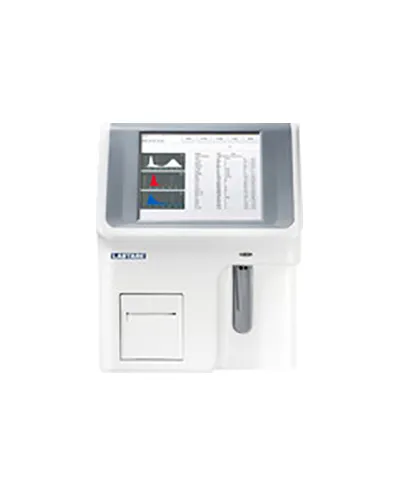

Blood Analyzer is used to determine components in blood. It is used by hospitals, medical labs, forensic labs and used to test for many things, such as blood cell counts, therapeutic drug monitoring, illegal drug use, blood typing, protein analysis, checking thyroid function, checking for the presence of antibodies. Used in Forensic Lab, Protein Analysis, Hospitals, Medical, Laboratory, Research, Industry, Pharmaceutical. Also known as Laboratory Blood Analyzer, Laboratry Hematology Analyzer.
Interface : USB port, RS232 Test Principle : Impedance for cell counting and cyanide-free method for HGB Test Flow : - Clog Clear : High voltage and high pressure flush Parameter : WBC, Neu#, Lym#, Mid#, Neu%,Lym%, Mid%, RBC, HGB, HCT, MCV, MCH, MCHC,RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR Histograms : WBC, RBC, PLT Sample mode : Venous mode: 10pL, venous blood Capillary mode: 10pL, capillary blood Prediluted mode: 20pL capillary blood Test Channel : - Throughput : - Language : English, Spanish, Portuguese, Italian, etc. QC Mode : 3 level QC, L-J graph Calibration Mode : Auto mode and Manual mode Reference Range Type : - Reagent : Lyse(500ml) and Diluent(20L) Reagent required for single test: Diluent: 26mL, Lyse: 0.35mL Memory : 100,000 sample results Display : Touch screen LCD Printer : Thermal printer, supports external printer Power Supply : 100~240 AC, 50/60±1 Hz Dimension : 514x594x645 mm Weight : 24.7 kg
More From Clinical Laboratory Analyzer & Equipment
DW-TEK8520 is semiconductor laser scattering combined with cytochemical staining technology to achieve accurate five-classification of white blood cells, 5-part differentiation, 27 parameters 1 Scattergram, 4 Histograms Up to 90 samples per hour Optical solid state LASER scattering High efficient light collector (patented) 12.1″ TFT Touch Screen Original reagent, control and calibration. Easy to operate: Friendly and Intellective Software.Auto sample for option.
Hematology analyzers are used to count and identify blood cells in patients. Automatic hematology analyzer provides quantitative analysis of a patient’s blood components at high speed with accuracy to protect their health.
Semi-auto chemistry analyzers are faster, more precise, cheap, and more compact as compared to fully automated analyzers, widely applied to various hospitals and research institutes, with the characteristics of high precision, excellent repeatability, and complete function.
