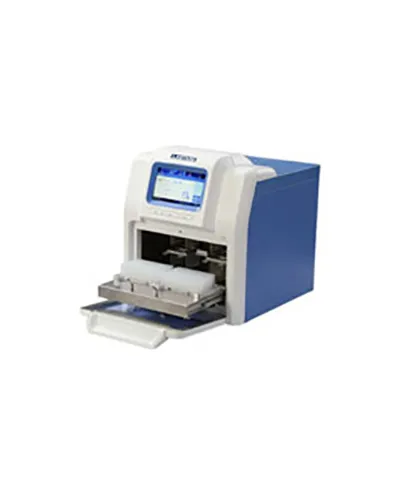

Nucleic Acid Purification System utilises the proven magnetic-particle technology to extract highly purified nucleic acid from a wide range of sample types relevant for molecular diagnostics, genetic identity testing, forensic testing, biomedical research and gene expression analysis. The combination of easy-to-use instruments, with pre-loaded protocols selection and magnetic particle-based sample preparation kits filled with unique special reagent ensures the rapid nucleic acid extraction and highly purified products. Used in Biological, Medical Sciences, DNA and RNA Purification, Cultured Cells, Bacteria, Tissues, Cell-Free Body Fluids, Plant Samples, Blotting, PCR, Cloning. Also known as Laboratory Nucleic Acid Purification System.
Storage Capacity : more than 100 programs Protocol Management : Create, edit, delete, protocol mode Pollution Control : UV light Throughput : 1~20 Process Volume : 50~5000 ul Collection Efficiency : >95% Magnetic Rod Number : 20 Purification Accuracy : 100 copy sample positive rate>95% Stability : CV<5% Plate Types : 5 ml tube strip Heating for lysis tube : Ambient temperature~120°C Heating for elution tube : Ambient temperature~120°C Operation : 7-inch color touchscreen Extraction Steps : Lysis, Sample Binding, Washing and Elution Lighting : Yes Extension Interface : 4 standard USB port, built-in SD card Exhaust : Fan Power Supply : 450 W Dimensions(WxLxH) : 400x520x450 mm Weight : 28 kg
