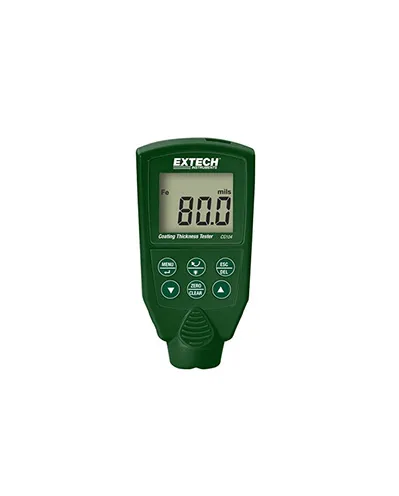

The CG104 is a pocket-sized coating thickness tester which offers quick one-handed operation and non-destructive measurements of the thickness of ferrous and non-ferrous substrates. Its unique reversible display allows you to take readings in challenging angles of area being measured, plus it has an easy-to use menu system and backlit display feature. Built-in memory stores/recalls up to 255 readings. Complete with two AAA batteries, calibration standards (one ferrous plate, one non-ferrous plate and one standard coating plate film), wrist strap and soft case.
Ferrous Specifications : Working Principle : Magnetic Induction Measuring Range : 0 to 2000μm (0 to 80.0mils) Resolution : 1μm (0.1mils) Basic Accuracy : ±4 digits (0 to 7.8mils); ±10 digits (o to 199µm)
Non-Ferrous Specifications : Working Principle : Eddy Current Measuring Range : 0 to 1000μm (0 to 40.0mils) Resolution : 1μm (0.1mils) Basic Accuracy : ±4 digits (0 to 7.8mils); ±10digits (0 to 199µm) Dimensions/ Weight : 4.1x2.2x1.1" (105x55x27mm)/ 2.82oz (80g)
The Positector SHD is an advanced Digital Durometer for hardness measurement of rubber, plastic, epoxy and more. The Positector SHD features a color LCD display with user-adjustable measurement time with onscreen countdown for testing according to national and international standards. The PosiTector SHD Shore Hardness Durometer can be used as a handheld instrument or placed in a test stand to reduce operator influence
The Positector SHD is an advanced Digital Durometer for hardness measurement of rubber, plastic, epoxy and more. The Positector SHD features a color LCD display with user-adjustable measurement time with onscreen countdown for testing according to national and international standards. The PosiTector SHD Shore Hardness Durometer can be used as a handheld instrument or placed in a test stand to reduce operator influence
The Positector SHD is an advanced Digital Durometer for hardness measurement of rubber, plastic, epoxy and more. The Positector SHD features a color LCD display with user-adjustable measurement time with onscreen countdown for testing according to national and international standards. The PosiTector SHD Shore Hardness Durometer can be used as a handheld instrument or placed in a test stand to reduce operator influence
