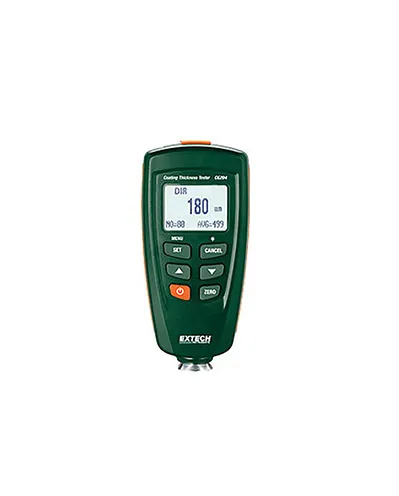

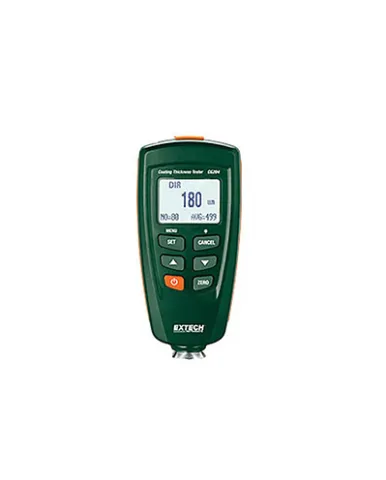

Coating Thickness Tester – Extech CG204

Category :
Coating, Hardness and Thickness Meter

Price :

Rp.5.700.000

Chat Us

DESCRIPTION
SPECIFICATION

The CG204 is a portable meter designed for noninvasive coating thickness measurements. The tester uses dual technology that provides automatic recognition of ferrous (magnetic induction measurement) and non-ferrous (eddy current measurement) substrates. Featuring two measuring modes: Single and Continuous, 400 reading memory storage and user-programmable high/low alarms. Comes with two AAA batteries, USB cable, software, calibration iron, calibration aluminum, precision standards, pouch case, and user manual.

Ferrous Probe (magnetic induction) :
Range (max res) : 0 to 1250µm (0.1µm); 0 to 49mils (0.004mils)
Basic Accuracy : ±3%
Min. Curvature Radius : 1.5mm (59.06mils)
Minimum Diameter : 7mm (275.6mils)
Minimum Thickness : 0.5mm (19.69mils)

Non-Ferrous Probe (eddy current) :
Range (max res) : 0 to 1250µm (0.1µm); 0 to 49mils (0.004mils)
Basic Accuracy : ±3%
Min. Curvature Radius : 3mm (118.1mils)
Minimum Diameter : 5mm (196.9mils)
Minimum Thickness : 0.3mm (11.81mils)
Dimensions/Weight : 4.7x2.4x1.25" (120x6 x32mm)/ 6.17oz (175g)
