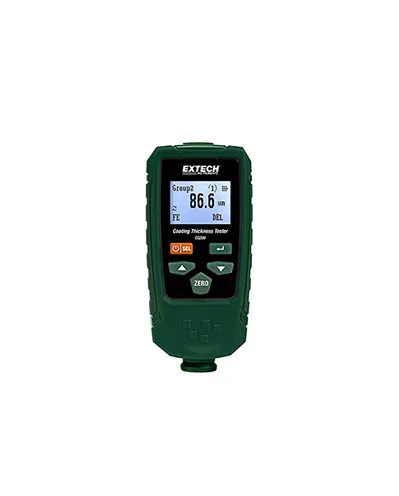

Coating Thickness Tester – Extech CG206

Category :
Coating, Hardness and Thickness Meter

Price :

Rp.6.700.000

Chat Us

DESCRIPTION
SPECIFICATION

Dual technology provides automatic recognition for ferrous and non-ferrous substrates without having you guess the material. Allows for quick, one-handed operation, non- destructive measurement of the coating thickness on various surfaces.

Ferrous Specifications :
Measuring Range : 0 to 1350μm (0 to 53mils)
Resolution : 0.1μm (0.004mils)
Accuracy : ±2.5%
Minimum Curvature Radius : 1.5mm (59.06mils)
Minimum Diameter : 7mm (275.6mils)
Minimum Thickness : 0.5mm (19.69mils)

Non-Ferrous Specifications :
Measuring Range : 0 to 1350μm (0 to 53mils)
Resolution : 0.1μm (0.004mils)
Accuracy : ±2.5%
Minimum Curvature Radius : 3mm (118.1mils)
Minimum Diameter : 5mm (196.9mils)
Minimum Thickness : 0.3mm (11.81mils)
Dimensions : 4.5 x 2.1 x 1.1" (113.5 x 54 x 27mm)
Weight : 3.9oz (110g)
