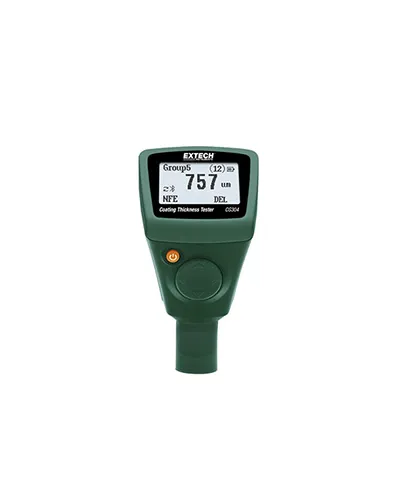

Coating Thickness Tester with Bluetooth - Extech CG304

Category :
Coating, Hardness and Thickness Meter

Price :

Rp.8.500.000

Chat Us

DESCRIPTION
SPECIFICATION

The CG304 Coating Thickness Tester offers a non-destructive way of measuring the thickness of ferrous and non-ferrous substrates with automatic recognition of the material being measured. Memory stores 2500 readings. The unique Bluetooth interface feature wirelessly transmits data to your PC for further analysis and enables you to generate a documented report. Special LCD with backlight feature and contrast for easy viewing in various lighting conditions. Complete with two AAA batteries, software, hard case, Steel and Aluminum substrates and standard films for calibration.

Ferrous Probe specifications :
Working Principle : Magnetic Induction
Measuring Range : 0 to 2000µm; 0 to 78.7mils
Accuracy : ±(2%+2µm); ±3.5% (1000 to 2000µm)
Resolution : 0.1µm (0.01mils)
Minimum Curvature Radius : 1.5mm (59.06mils)
Minimum Diameter : 7mm (275.6mils)
Minimum Thickness : 0.5mm (19.69mils)

Non-Ferrous Probe specifications :
Working Principle : Eddy Current
Measuring Range : 0 to 2000µm; 0 to 78.7mils
Accuracy : ±(2%+2µm); ±3.5% (1000 to 2000µm)
Resolution : 0.1µm (0.01mils)
Minimum Curvature Radius : 3mm (118.1mils)
Minimum Diameter : 5mm (196.9mils)
Minimum Thickness : 0.3mm (11.81mils)
Dimensions /Weight : 4.7x2.4x1.25" (120x62x32mm)/6.17oz (175g)
