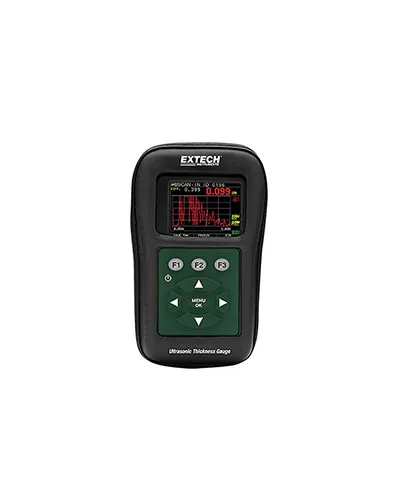

The TKG250 is a Digital Ultrasonic Thickness Gauge/Datalogger with Color Waveform function. Extech offers Thickness Gauges designed in compact, handheld, rugged housing ideal for field use. The ultrasonic technology allows for non-destructive thickness measurements for primarily steel structures. Datalogs up to 100K readings and can be exported to Excel® for further analysis. Complete with protective holster, 2oz bottle of coolant, 2 AA batteries, 5MHz Transducer, hard carrying case, USB cable and Exporter software.
Steel Thickness Range : 5MHz probe: 0.040 to 20" (1.0 to 508mm); 10MHz probe: 0.020 to 20" (0.50 to 508mm) Material velocity calibration range : 0.200 to 0.7362 in/μS (0.508 to 18.699mm/μS) Languages : English, French, Spanish, Italian, Czech, German, Portuguese, Slovak, Finnish, and Hungarian Hold Mode : Holds display to retain last thickness reading with reverse video display Freeze Mode : Freezes display (ideal for high temperature readings) Fast Min/Max Mode : Displays Min or Max and actual thickness value at 20 measurements/sec Units : Inches/Millimeters/Microseconds Alarms : Audible beeping; illuminae flashing display and keypad; and vibration feedback Illuminating Keypad : F1 = Red, F2 = Yellow, F3 = Green for easy, go/no-go testing Battery Life : 8 to 14hrs (depends on operating conditions)
The Positector SHD is an advanced Digital Durometer for hardness measurement of rubber, plastic, epoxy and more. The Positector SHD features a color LCD display with user-adjustable measurement time with onscreen countdown for testing according to national and international standards. The PosiTector SHD Shore Hardness Durometer can be used as a handheld instrument or placed in a test stand to reduce operator influence
The Positector SHD is an advanced Digital Durometer for hardness measurement of rubber, plastic, epoxy and more. The Positector SHD features a color LCD display with user-adjustable measurement time with onscreen countdown for testing according to national and international standards. The PosiTector SHD Shore Hardness Durometer can be used as a handheld instrument or placed in a test stand to reduce operator influence
The Positector SHD is an advanced Digital Durometer for hardness measurement of rubber, plastic, epoxy and more. The Positector SHD features a color LCD display with user-adjustable measurement time with onscreen countdown for testing according to national and international standards. The PosiTector SHD Shore Hardness Durometer can be used as a handheld instrument or placed in a test stand to reduce operator influence
