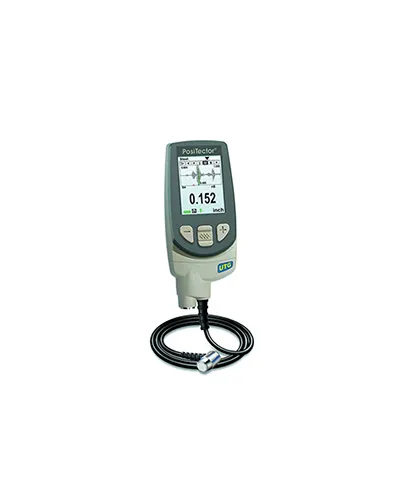

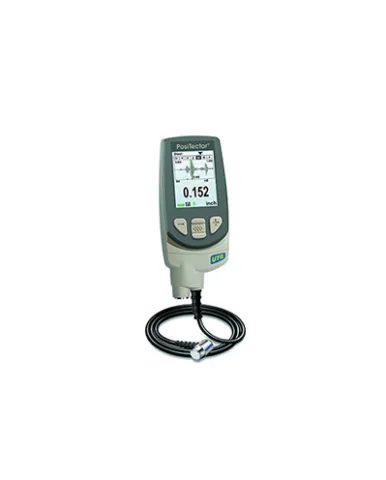

Portable Ultrasonic Thickness Gages - Defelsko PosiTector UTGM3

Category :
Coating, Hardness and Thickness Meter

Price :

Rp.40.500.000

Chat Us

DESCRIPTION
SPECIFICATION

Measures the wall thickness of materials such as steel, plastic and more using ultrasonic technology. Ideal for measuring the effects of corrosion or erosion on tanks, pipes or any structure where access is limited to one side. Multiple echo (UTG M) Thru-Paint models measure the metal thickness of a painted structure without having to remove the coating

Measurement range : 0.100" to 2.500" / 2.50 to 60.00 mm
Reading storage capacity : 100,000 in up to 1,000 batches
Thru-paint capability : Yes
Mode : Multiple echo
Resolution : 0.001" / 0.01 mm
Accuracy : +/ – 0.001" / +/ – 0.03 mm
Probe type : 5 MHz Contact
Size : 146 x 61 x 28mm (5.75"x 2.4" x 1.1")
Weight : 140 g (4.9 oz.)
