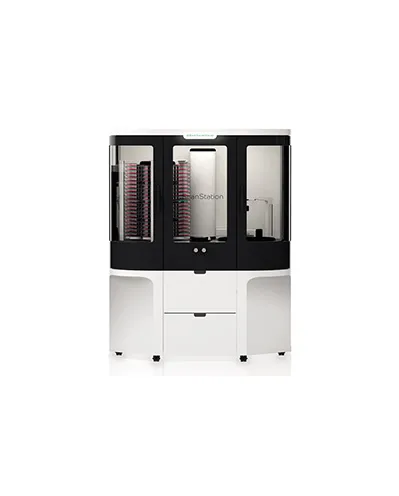

ScanStation 200 is a unit centralizing incubation, detection and counting of Petri dishes. Colonies are detected & counted as soon as they appear. Follow the growth curve of the colonies. ScanStation 200 can accomodate up to 200 Petri dishes. The robotic arm transfers the Petri dishes from the carousel to the camera to perform a time-lapse photography. ScanStation is equipped with a pressure-sensitive gripper which adapts itself to all Petri dishes. ScanStation is compatible with Spiral platers and the dataLink system. This will avoid double data entry, a source of error, and save time
Reference : 439 200 Capacity : 200 Petri dishes Reading time in between each dish : 30 minutes or 1 hour Petri dish size : Ø 90 mm right-side up or upside down and Ø 55-65 mm (with adaptor for Ø 55-65 mm dishes ref : 439 180) Type of plating accepted : Pour plate, surface, Spiral, filtration membrane Loading : Single or multi-batch Camera resolution : 5 megapixels Interface : 23 inches touch screen Data export : Excel Video player : Play, zoom, pause, replay, during and after incubation Included computer system : PC Windows 10 desktop with Intel i7 processor Software : ScanStation software Incubation temperature : From 20°C to 45°C Accuracy of incubation temperature : ± 1°C (checked by a 9-point mapping system) Recording of the temperature : Every minute Heating and cooling technology : Peltier modules, compressor free External temperature : From 18°C to 25°C Max external humidity temperature : 70% Max incubation time : 10 days LED internal light : V Electronic locking door : V Pressure sensitive gripper to adapt itself to any kind of dish : V Robotic architecture with incubator, gripper and colony counter : V Extra rigid mass aluminum platform : V External dimensions (w x d x h) : 136 x 83 x 122 cm External dimensions (handles dismantled - w x d x h) : 136 x 79 x 122 cm Height of the storage unit : 55 cm Voltage – Frequencies : 100-240V~ 50-60 Hz Power : 2000 W Total height with storage unit : 177 cm Weight of the ScanStation : 320 kg (without option) Transport box dimensions (w x d x h) : 196 x 96 x 207 cm Weight of the storage furniture : 70 kg Gross weight (without option) : 475 kg
Scan 100 enables the accurate counting of colonies on any type of media. The integrated USB key enables to export the results to guarantee traceability. can 100 is a manual colony counter suitable for all types of media: Petri dishes (Ø 55, 65, 90 and 150 mm), PetriFilm, MC-Media Pads, filtration membranes. The counting is done by simple touch, and then recorded. You can count from 0 to 1998 UFC
Scan 300 is an automatic colony counter that includes the essential features for Petri dish counting. It is specifically adapted to the usual media in food microbiology: PCA, MRS etc. The Scan 300 can count up to 1000 colonies in 1 second in a constant and repeatable manner. Counting can be up to 98% accuracy. The minimum colony size is 0.1 mm. Scan 300 offers multiple export possibilities to save manual input time. It also increases the security and quality of your analyses
Scan 500 is an automatic colony counter that ensures fast and efficient counting of colonies, including on chromogenic agar. It guarantees excellent reproducibility. The images and results are saved and usable anytime. Scan 500 can count up to 1000 colonies in 1 second in a constant and repeatable mode. Counting accuracy reach up to 98%. The minimum colony size is 0.05 mm. Scan 500 offers multiple export possibilities to save manual input time. It also increases the security and quality of your analyses. Usually, Petri dishes are thrown away after counting and no further verification is possible in the event of a claim. With Scan 500, all reports are archived
