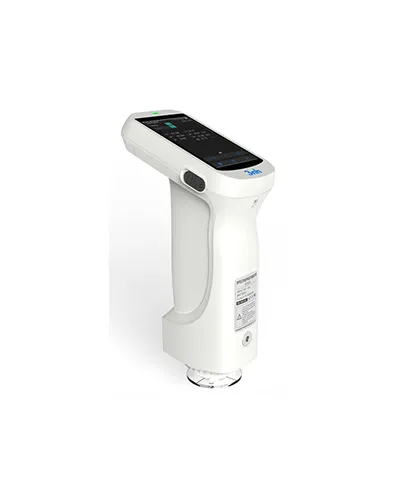

ST2222 is a new portable spectrophotometer with 3nh own core research and development technology,Built-in large area silicon photodiode array (double row 22 groups) sensors, with excellent repeatability and inter-station differences, measuring data continued stable, accurate and reliable. The repeatability ΔE * AB of the array spectrometer ST2222 is easily controlled within 0.018, and the Inter-instrument Error ΔE * AB is controlled within 0.18. The measurement is accurate and can be used for accurate color analysis and transmission in the laboratory. ST2222 array spectrometer with Φ8MM/φ10mm platform + Φ8MM/φ10mm sharp tip +Φ4MM/φ5mm platform + Φ4MM/φ5mm sharp tip and 1*3MM/φ five measuring aperture, no matter the sample surface is regular flat or curved radian, can easily measure and get reliable and good repeatability data, in plastic electronics, paint coating, textile printing and dyeing, printing paper products, automotive, medical, cosmetics and food industries, scientific research institutions, laboratories are widely used.
Product name : ST2222 array spectrophotometer Optical Geometry : D/8(diffused illumination, 8-degree viewing angle) Specular Component : SCI Including the specular reflection of light Meet The Criteria : CIE NO.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 Repeatability* : ΔE*ab≤0.018 Inter-instrument Error** : ΔE*ab≤0.18 Displayed Accuracy : 0.01 Measuring/Illuminating Aperture*** : Five Apertures:Φ8MM/φ10mm platform + Φ4MM/φ5mm platform + Φ8MM/φ10mm sharp tip + Φ4MM/φ5mm sharp tip +1*3mm Measurement Indicators : Spectral reflectivity, CIE-Lab, CIE-LCh, HunteLab, CIE-Luv, XYZ, Yxy, RGB, chromatic aberration (ΔE * ab, ΔE * CMC, ΔE * 94, ΔE * 00) , whiteness (ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger Stensby) , yellows (ASTM D1925, ASTM E313-00, ASTM E313-73) , blackness (My, DM) , staining fastness, colour changing fastness, tint (ASTM E313-00) , color density CMYK (A, T, E, M) , isochromism index Milm, Munsell, hiding power, force fraction (dye strength, coloring power) Illuminant : A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-B6,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-V3,Customisable light sources Displayed Data : Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset Light Source : Combined full spectrum LED light source, UV light source Locating Method : Camera Locating, Stability film, visual Calibration : Intelligent automatic calibration (Contact Type) Accuracy Assurance : Grade I metrological qualification Observer Angle : 2°, 10° Integrating Sphere Size : 40mm Spectrophotometric Mode : Flat Grating Sensors : Large-area silicon photodiode array (double row 22 groups) Wavelength Interval : 10nm Wavelength Range : 400-700mm(The user can view 31 wavelengths of reflectivity) Measured Reflectance Range : 0-200% Reflectivity resolution : 0.01% Measurement Mode : Single Measurement, Average Measurement(2-99times) Measuring Time : About 1s Battery : Li-ion battery, 8500 measurements within 8 hours Illuminant Life Span : 10 years, more than 1.5 million times measurements Display : 3.5-inch TFT color LCD, Capacitive Touch Screen Data Port : USB, Bluetooth 5.0 Data Shorage : Standard 500 Pcs, Sample 20000 Pcs(A single piece of data can include both SCI/SCE) Mass storage on PC/APP side Software Support : Windows, Android, IOS, HUAWEI Harmony OS, We Chat app, Color Cloud APP Language : Simplified Chinese, English, Traditional Chinese Operating Environment : 0~40℃, 0~85%RH (no condensing), Altitude < 2000m Storage Environment : -20~50℃, 0~85%RH (no condensing) Standard Accessory : Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 4mm tip aperture Optional Accessory : USB Micro Printer, Powder Test Box Size : L * W * H=114 X 70 X 208mm Weight : About 435g(Calibration block not included)
Spectrophotometer ST50 is a spectrophotometer developed by 3NH TS series core technology, using built-in photodiode array (double 20 groups) sensors, imported whiteboard, while taking into account the measurement speed and convenience of operation. The repeatability delta E* AB of ST50 spectrophotometer is easily controlled within 0.03, and the Inter-instrument error delta E* AB is controlled within 0.2, to make the measurement more accurate. And the test data can be used for accurate color analysis and transmission in the laboratory.
Spectrophotometer ST60 is a spectrophotometer developed by 3NH TS series core technology, using built-in photodiode array (double 26 groups) sensors, imported whiteboard, while taking into account the measurement speed and convenience of operation. The repeatability delta E* AB of ST60 spectrophotometer is easily controlled within 0.025, and the Inter-instrument error delta E* AB is controlled within 0.15, to make the measurement more accurate. And the test data can be used for accurate color analysis and transmission in the laboratory.
Spectrophotometer ST70 is a spectrophotometer developed by 3NH TS series core technology, using built-in photodiode array (double 32 groups) sensors, imported whiteboard, while taking into account the measurement speed and convenience of operation. The repeatability delta E* AB of ST70 spectrophotometer is easily controlled within 0.02, and the Inter-instrument error delta E* AB is controlled within 0.15, to make the measurement more accurate. And the test data can be used for accurate color analysis and transmission in the laboratory.
