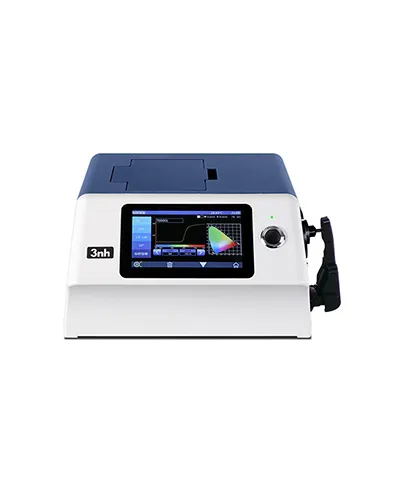

Model : YS6003
Optical Geometry :
Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle);SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source;
Transmittance: di:0°, de:0° (diffuse illumination: 0° viewing); SCI (specular component included)/SCE (specular component excluded) ;
Haze(ASTM D1003);
Conforms to CIE No.15，GB/T 3978,GB 2893,GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7
Application : It is used for accurate analysis and transmission of laboratory color. Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control.
Integrating Sphere Size : Φ154mm
Light Source : 360 nm to 780 nm, Combined LED Light (5 million life span)
Spectrophotometric Mode : Concave Grating
Sensor : 256 Image Element Double Array CMOS Image Sensor
Wavelength Range : 360-780nm
Wavelength Interval : 10nm
Semiband Width : 5nm
Measured Reflectance Range : 0-200%
Measuring Aperture :
Reflective : Φ30mm/Φ25.4mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm;
Transmissive : Φ25.4mm;
1. Automatic identification of switch caliber
2. Customized Configuration caliber and lens position
Specular Component : Reflectance: SCI&SCE / Transmittance: SCI&SCE
Color Space : CIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,βxy,DIN Lab99
Color Difference Formula : ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)
Other Colorimetric Index :
WI (ASTM E313, CIE/ISO, AATCC, Hunter),
YI (ASTM D1925, ASTM 313),
MI (Metamerism Index),
Staining Fastness, Color Fastness, Color Strength, Opacity,
8° Glossiness,Gardner Index,APHA/ Pt-Co Index, 555 Index, Haze(ASTM D1003)
Observer Angle : 2°/10°
Illuminant : D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30
Displayed Data : Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time : About 2.4s (Measure SCI & SCE about 5s)
Repeatability:
Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.06% ;
Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.01 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration);
Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.06%;
Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.015 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration).
Inter-instrument Error : Φ25.4mm/SCI, Within ΔE*ab 0.15 (Average for 12 BCRA Series II color tiles)
Power : AC 24V, 3A Power adapter power supply
Illuminant Life Span : 5 years, more than 3 million times measurements
Display : 7-inch TFT color LCD, Capacitive Touch Screen
Data Port : USB & Print serial port
Data Storage : Standard 1000 Pcs, Sample 20000 Pcs
Language : Simplified Chinese, Traditional Chinese, English,
Operating Environment : 0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment : -20~50℃, 0~85%RH (no condensing)
Standard Accessory : Power Adapter, User Guide, CD Disk(PC Software), USB cable, Standard Calibration Board, Black Calibration Cavity, Transmission black baffle, Sample holder, 25.4mm caliber, 8mm caliber, 4mm caliber
Optional Accessory : Micro-printer, Transmissive Test Component, Instrument inversion components,,culture dish
Dimension : L*W*H=370x300x200mm
Weight : Approx. 9.6kg
