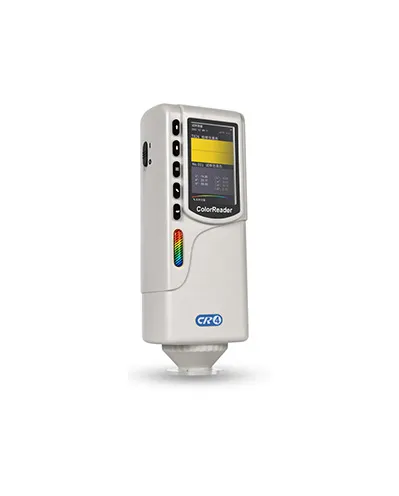

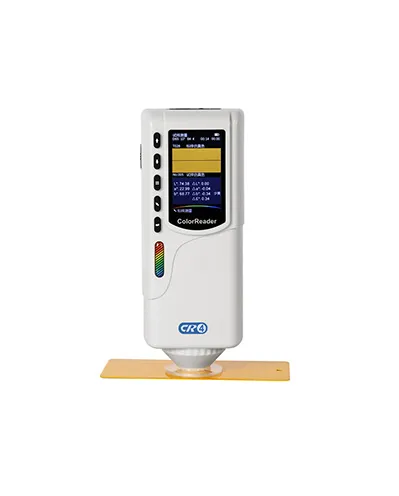

ColorReader CR4 (industrial basic version) is the creative work of 3nh's core technical elites and joint well-known designers. It embodies the technical strength completed in a short time, the professionalism of high-intensity testing, and the traditional bloodline of innovation and excellence. ColorReader CR4 (industrial basic version) is an innovative tool for color measurement, reading, color card retrieval and color difference evaluation. It integrates powerful color recognition capabilities in a safe and portable body, and seamlessly connects with mobile phone devices through Bluetooth, which makes the traditional color measuring instrument glow with different application charm.
Model : CR4 OpticalGeometry : 8/D (8°illumination diffuse acceptance) SCI Comply with standard CIE No.15 GB/T 3978 Application : Used for color difference quality control in plastic electronics paint and coating textile and garment printing and dyeing ceramics and other industries. Find the color card through the mobile APP IntegratingSphereSize : 40mm Light Source Device : Full spectrum LED light source SpectroscopicMethod : 8 channel filter optical splitting Sensor : CMOS Sensor SpectralRange : 400~700 nm Measurement Aperture : Φ4mm Light-included Mode : SCI Color Spaces : CIE LAB LCh Color difference formulas : ΔE*ab OtherColorimetricData : Spectral curve (only in APP) Division Value : 0.1 Observer : 10° Illuminant : D65 Displayed Data : Chromaticity Values Color Difference Values Pass/Fail Result Color Simulation Color Offset Measurement Time : About 1.2s Repeatability : Chromaticity value: withinΔE*ab 0.1 (After calibration measure the average value of the whiteboard 30 times at 5s intervals) Accuracy : Does not guarantee to pass the national metrology MeasurementMethod : Single measurement average measurement (2~99 times) Battery Performance : Rechargeable Li-ion battery 3.7V @ 3200mAh Life Lamp : More than 1.6 million measurements in 5 years Screen : TFT true color 2.8inch@(16:9) Interface : USB (charge only); Bluetooth 5.0 Data storage : 100pcs standard samples 10000pcs samples storage can be extended through mobile APP Data viewing : APP supports massive search; Device supports 5 latest standard samples and 5 samples data viewing Languages : Simplified Chinese English Operating Environment : Temperature: 0~40°C; Humidity: 0~85% (No Condensation) Altitude: less than 2000m Storage Environment : -20~50℃ 0~85%RH (no condensation) Standard Accessories : Power adapter manual MOBCCS APP software (download from official website Android platform) USB cable whiteboard box wrist strap Φ4mm flat aperture Optional Accessories : USB Micro PrinterPowder test box Size : 205X67X80mm Weight : About 500g
Spectrophotometer ST50 is a spectrophotometer developed by 3NH TS series core technology, using built-in photodiode array (double 20 groups) sensors, imported whiteboard, while taking into account the measurement speed and convenience of operation. The repeatability delta E* AB of ST50 spectrophotometer is easily controlled within 0.03, and the Inter-instrument error delta E* AB is controlled within 0.2, to make the measurement more accurate. And the test data can be used for accurate color analysis and transmission in the laboratory.
Spectrophotometer ST60 is a spectrophotometer developed by 3NH TS series core technology, using built-in photodiode array (double 26 groups) sensors, imported whiteboard, while taking into account the measurement speed and convenience of operation. The repeatability delta E* AB of ST60 spectrophotometer is easily controlled within 0.025, and the Inter-instrument error delta E* AB is controlled within 0.15, to make the measurement more accurate. And the test data can be used for accurate color analysis and transmission in the laboratory.
Spectrophotometer ST70 is a spectrophotometer developed by 3NH TS series core technology, using built-in photodiode array (double 32 groups) sensors, imported whiteboard, while taking into account the measurement speed and convenience of operation. The repeatability delta E* AB of ST70 spectrophotometer is easily controlled within 0.02, and the Inter-instrument error delta E* AB is controlled within 0.15, to make the measurement more accurate. And the test data can be used for accurate color analysis and transmission in the laboratory.
