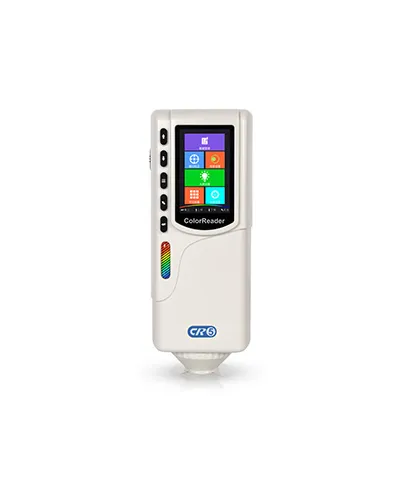

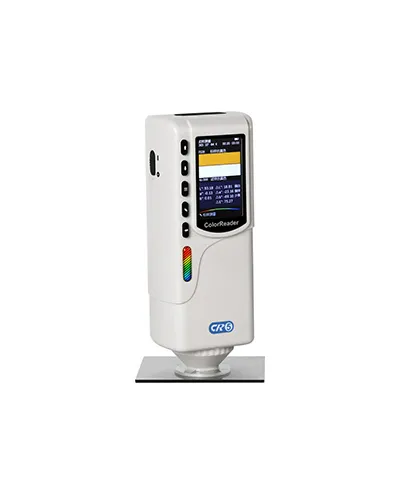

ColorReader CR5 (Industrial Pro Version) is the creative work of 3nh's core technical elites and joint well-known designers. It embodies the technical strength completed in a short time, the professionalism of high-intensity testing, and the traditional bloodline of innovation and excellence. ColorReader CR5 (Industrial Pro Version) is an innovative tool for color measurement, reading, color card retrieval and color difference evaluation. It integrates powerful color recognition capabilities in a safe and portable body, and seamlessly connects with mobile phone devices through Bluetooth, which makes the traditional color measuring instrument glow with different application charm.
Model : CR5 OpticalGeometry : 8/D (8°illumination diffuse acceptance) SCI Comply with standard CIE No.15 GB/T 3978 Application : Used for color difference quality control in plastic electronics paint and coating textile and garment printing and dyeing ceramics and other industries. Find the color card through the mobile APP IntegratingSphereSize : 40mm Light Source Device : Full spectrum LED light source SpectroscopicMethod : 8 channel filter optical splitting Sensor : CMOS Sensor SpectralRange : 400~700 nm Measurement Aperture : Φ4mm Light-included Mode : SCI Color Spaces : CIE LAB XYZ Yxy LCh CIE LUV s-RGB HunterLab βxy DIN Lab99 (Part of them are only implemented in APP) Color difference formulas : ΔE*ab ΔE*uv ΔE*94 ΔE*cmc(2:1) ΔE*cmc(1:1) ΔE*00 DINΔE99 ΔE(Hunter) (Part of them are only implemented in APP) OtherColorimetricData : WI(ASTM E313,CIE/ISOAATCCHunter) YI(ASTM D1925,ASTM 313) Mt(metamerism Index) Staining Fastness Color Fastness Color Strength Opacity 555 Index Munsell(C/2) Spectro Curve (Part of them are only implemented in APP) Division Value : 0.1 Observer : 2°/10° Illuminant : D65 A C D50 D55 D75 F1 F2(CWF) F3 F4 F5 F6 F7(DLF) F8 F9 F10(TPL5) F11(TL84) F12(TL83/U30) (Part of them are only implemented in APP) Displayed Data : Chromaticity Values Color Difference Values Pass/Fail Result Color Simulation Color Offset Measurement Time : About 1.2s Repeatability : Chromaticity value: withinΔE*ab 0.1 (After calibration measure the average value of the whiteboard 30 times at 5s intervals) Accuracy : Pass the national metrology MeasurementMethod : Single measurement average measurement (2~99 times) LocateMode : Light Spot Positioning Battery Performance : Rechargeable Li-ion battery 3.7V @ 3200mAh Life Lamp : More than 1.6 million measurements in 5 years Screen : TFT true color 2.8inch@(16:9) Interface : USB (charge only); Bluetooth 5.0 Button Data storage : 1000pcs standard samples 10000pcs samples storage can be extended through mobile APP Data viewing : APP supports massive search; Device supports 50 latest standard samples and 50 samples data viewing Languages : Simplified Chinese English Operating Environment : Temperature: 0~40°C; Humidity: 0~85% (No Condensation) Altitude: less than 2000m Storage Environment : -20~50℃ 0~85%RH (no condensation) Standard Accessories : Power adapter manual MOBCCS APP software (download from official website Android platform) USB cable whiteboard box wrist strap Φ4mm flat aperture Optional Accessories : USB Micro PrinterPowder test box Size : 205X67X80mm Weight : About 500g
Spectrophotometer ST50 is a spectrophotometer developed by 3NH TS series core technology, using built-in photodiode array (double 20 groups) sensors, imported whiteboard, while taking into account the measurement speed and convenience of operation. The repeatability delta E* AB of ST50 spectrophotometer is easily controlled within 0.03, and the Inter-instrument error delta E* AB is controlled within 0.2, to make the measurement more accurate. And the test data can be used for accurate color analysis and transmission in the laboratory.
Spectrophotometer ST60 is a spectrophotometer developed by 3NH TS series core technology, using built-in photodiode array (double 26 groups) sensors, imported whiteboard, while taking into account the measurement speed and convenience of operation. The repeatability delta E* AB of ST60 spectrophotometer is easily controlled within 0.025, and the Inter-instrument error delta E* AB is controlled within 0.15, to make the measurement more accurate. And the test data can be used for accurate color analysis and transmission in the laboratory.
Spectrophotometer ST70 is a spectrophotometer developed by 3NH TS series core technology, using built-in photodiode array (double 32 groups) sensors, imported whiteboard, while taking into account the measurement speed and convenience of operation. The repeatability delta E* AB of ST70 spectrophotometer is easily controlled within 0.02, and the Inter-instrument error delta E* AB is controlled within 0.15, to make the measurement more accurate. And the test data can be used for accurate color analysis and transmission in the laboratory.
