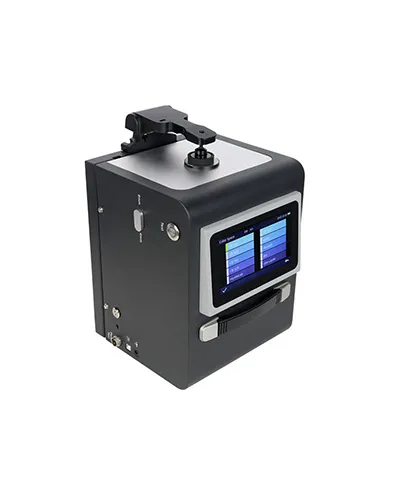

Portable Desktop Spectrophotometer - 3NH TS8210

Category :
Colorimeter and Color Reader

Price :

Rp.239.070.000

Chat Us

DESCRIPTION
SPECIFICATION

The portable desktop spectrophotometer TS8210 is a spectrophotometer developed by 3NH with independent core spectroscopic technology. It adopts built-in silicon photodiode array (40 groups in double rows) sensors and imported white board, and gives consideration to the speed of measurement and the convenience of operation. The rotating and pressing structure makes the test more convenient. TS8210 portable desktop spectrophotometer color measurement instrument features with repeatability Δ E * ab easily control within 0.025, and inner errors Δ E * ab control within 0.2. This accuracy measurement makes it good used in the lab color accurate analysis and transfer.

Model : TS8210
Optical Geometry :
D/8(diffused illumination, 8-degree viewing angle)
SCI (specular component included)/SCE (specular component excluded) ; excluded UV measurement
Comply to CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristic :
Customized aperture,good for horizontal or vertical measurement, wider adaptability;
Suitable for precise color measurement and quality control in textile and garment printing and dyeing, plastic electronics, ceramics and other industries;
Integrating Sphere Size : Φ40mm
Light Source : Combined full spectrum LED light source
Spectrophotometric Mode : Flat Grating
Sensors : Silicon photodiode array (double row 40 groups)
Wavelength Range : 400~700nm
Wavelength Interval : 10nm
Semiband Width : 10nm
Measured Reflectance Range : 0~200%
Measuring Aperture : Customized single aperture:MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm
Specular Component : SCI/SCE
Color Space : CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,Munsell(C/2)
Color Difference Formula : ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00
Other Colorimetric Index :
WI(ASTM E313,CIE/ISO,AATCC,Hunter)，
YI(ASTM D1925,ASTM 313),
Staining Fastness, Color Fastness, Color Strength, Opacity
8° Glossiness,555 tone classification
Observer Angle : 2°/10°
Illuminant : D65,A,C,D50,F2(CWF),F7(DLF),F10(TPL5),F11(TL84),F12(TL83/U30)
Displayed Data : Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset
Measuring Time : About 1.5s (Measure SCI & SCE about 3.2s)
Repeatability : Chromaticity value: MAV/SCI, within ΔE*ab 0.025 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error : MAV/SCI, Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles)
Measurement Mode : Single Measurement, Average Measurement(2-99times)
Locating Method : Camera Locating
Battery : AC 24V, 3A Power adapter power supply
Illuminant Life Span : 5 years, more than 3 million times measurements
Display : 7-inch TFT color LCD, Capacitive Touch Screen
Data Port : USB, trigger switch interface
Data Storage : Standard 1000 Pcs, Sample 20000 Pcs
Language : Simplified Chinese, English, Traditional Chinese
Operating Environment : 0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment : -20~50℃, 0~85%RH (no condensing)
Standard Accessory : Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Aperture (Optional Aperture)
Optional Accessory : Micro Printer, Foot Switch, Rotating Bracket
Dimension : L*W*H=370X240X260mm
Weight : About 7.8kg
