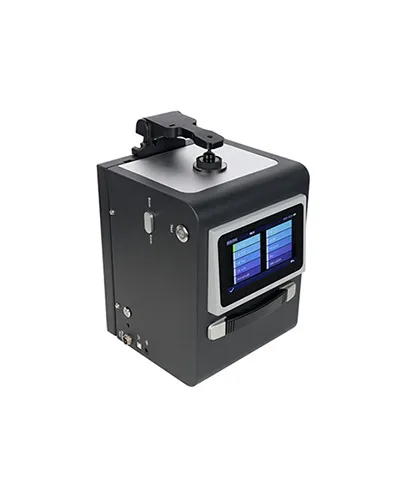

Model : TS8450
Optical Geometry :
45/0(45 ring-shaped illumination, 0 degree viewing angle)
Comply to CIE No.15, GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristic :
Enhanced version spectrophotometer, Customized single aperture Φ18/8/4 mm diameter aperture, used in laboratory accurate analysis and transmission;
Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries; It can be used for fluorescence sample measurement.
It is used to measure the brightness factor and color coordinates of traffic signs, markings and reflective films. It contains GB 2893 and GB/T 18833 standard colors. It can customize the rectangular tolerance of polygons manually.
Integrating Sphere Size : Φ40mm
Light Source : Combined full spectrum LED light source, UV light source
Spectrophotometric Mode : Flat Grating
Sensors : 256 Image Element Double Array CMOS Image Sensor
Wavelength Range : 400~700nm
Wavelength Interval : 10nm
Semiband Width : 10nm
Measured Reflectance Range : 0~200%
Measuring Aperture : Customized single aperture,MAV:Φ25.4mm/Φ30mm;SAV:Φ8mm/Φ10mm
Specular Component : 45/0
Color Space : CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 Munsell(C/2)
Color Difference Formula : ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)
Other Colorimetric Index :
WI(ASTM E313,CIE/ISO,AATCC,Hunter)，
YI(ASTM D1925,ASTM 313),
Metamerism Index MI,
Staining Fastness, Color Fastness, Color Strength, Opacity
8° Glossiness,555 tone classification
Observer Angle : 2°/10°
Illuminant : D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Displayed Data : Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset
Measuring Time : About 1.8s
Repeatability :
Chromaticity value: MAV/SCI, within ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error MAV/SCI, Within ΔE*ab 0.15
(Average for 12 BCRA Series II color tiles)
Measurement Mode : Single Measurement, Average Measurement(2-99times)
Locating Method : -
Battery : AC 24V, 3A Power adapter power supply
Illuminant Life Span : 5 years, more than 3 million times measurements
Display : 7-inch TFT color LCD, Capacitive Touch Screen
Data Port : USB, Bluetooth ®5.0, trigger switch interface
Data Storage : Standard 1000 Pcs, Sample 30000 Pcs
Language : Simplified Chinese, English, Traditional Chinese
Operating Environment : 0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment : -20~50℃, 0~85%RH (no condensing)
Standard Accessory : Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Aperture (Optional Aperture)
Optional Accessory : Micro Printer, Foot Switch, Rotating Bracket
Dimension : L*W*H=370X240X260mm
Weight : About 7.8kg
