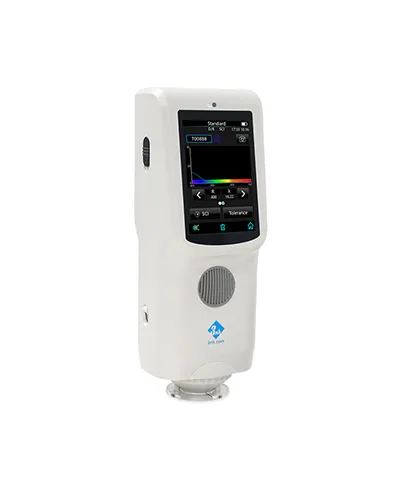

Portable Spectrocolorimeter – 3NH TS7036

Category :
Colorimeter and Color Reader

Price :

Rp.152.920.000

Chat Us

DESCRIPTION
SPECIFICATION

TS7036 is a new portable spectrocolorimeter with 3nh own core research and development technology. It is the high level colorimeter in spectral architecture. In addition to ensure accurate relative ΔE at the same time, it is also to ensure the accuracy of the absolute value of L, A and B for a long time. And it can pass the international standards and national standards of calibration any time any where. Using built-in silicon photodiode array (double row group 32) sensors, imported whiteboard, repeatability ΔE * ab is easily controlled within 0.05. The measurement speed and convenience of the operation makes it easy to use. TS7036 spectrocolorimeter can all quickly judge color difference measurement when connecting to PC software or not. With powerful functions and 4/8 mm double apertures, it meets the industry production and quality inspection of accurate color difference control like plastic electronics, paint and ink, textile printing and dyeing, printing, ceramic industry etc.

Model : TS7036
Optical Geometry :
D/8(diffused illumination, 8-degree viewing angle)
SCI/SCE Mode
Comply to CIE No.15 GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristic : double apertures, more adaptability; Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries
Integrating Sphere Size : Φ40mm
Light Source : Combined full spectrum LED light source, UV light source
Spectrophotometric Mode : Flat Grating
Senso : Silicon photodiode array (double row 32 groups)
Wavelength Range : 400～700nm
Wavelength Interval : 10nm
Semiband Width : 10nm
Measured Reflectance Range : L:0~120; reflectivity:0~200%
Measuring Aperture : Dual Apertures：MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm
Specular Component : SCI/SCE
Color Space : CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,DIN Lab9,DIN Lab99 Munsell(C/2)
Color Difference Formula : ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99
Other Colorimetric Index :
WI(ASTM E313,CIE/ISO,AATCC,Hunter)
YI(ASTM D1925,ASTM 313)
Metamerism Index MI
Staining Fastness, Color Fastness, Color Strength, Opacity,Color Card Search
Observer Angle : 2°/10°
Illuminant : D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Displayed Data : Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset
Displayed Accuracy : 0.01
Measuring Time : About 1.5s (Measure SCI & SCE about 3.2s)
Repeatability : Chromaticity value: MAV/SCI, within ΔE*ab 0.05 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error : MAV/SCI, Within ΔE*ab 0.3
(Average for 12 BCRA Series II color tiles)
Measurement Mode : Single Measurement, Average Measurement(2-99times)
Locating Method : Camera Locating,stabilizer cross position
Battery : Li-ion battery, 6000 measurements within 8 hours
Illuminant Life Span : 5 years, more than 3 million times measurements
Display : 3.5-inch TFT color LCD, Capacitive Touch Screen
Data Port : USB,Bluetooth 5.0
Data Storage : Standard 1000 Pcs, Sample 30000 Pcs(One data is able to include SCI/SCE)
Language : Simplified Chinese, English, Traditional Chinese
Operating Environment : 0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment : -20~50℃, 0~85%RH (no condensing)
Standard Accessory : Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture, 4mm flat aperture, 4mm tip aperture
Optional Accessory : USB Micro Printer, Powder Test Box,Bluetooth Micro Printer
Dimension : L*W*H=81X71X214mm
Weight : About 460g
