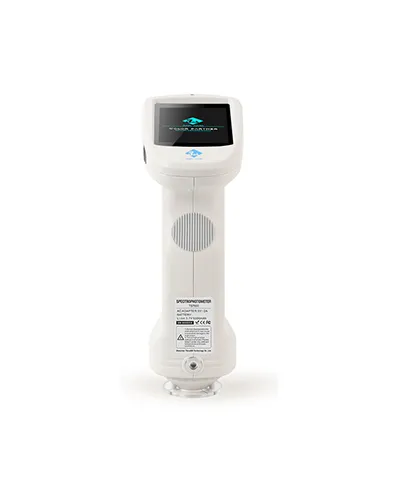

Portable Spectrophotometer – 3NH TS7600

Category :
Colorimeter and Color Reader

Price :

Rp.133.880.000

Chat Us

DESCRIPTION
SPECIFICATION

Ts7x series is a grating spectrophotometer that 3nh company has spent 3 years to design and is developed by 3nh independent intellectual property rights. The instrument adopts 1000 line precision blazed grating as the spectroscopic element, the silicon photocell array with large photosensitive area as the detector, the full spectrum led with high life as the light source, and the optical resolution is less than 10nm in the visible light range. Under the condition of d/8 geometric optical illumination recommended by CIE, TS7600 grating spectrophotometer can accurately measure the SCI and SCE reflectance data of samples / fluorescent samples, and also can accurately measure and express various color difference formulas and color indexes in various color spaces. With spectrophotometer TS7600, it can easily realize the accurate transmission of color and can also be used as the detection equipment of accurate color matching system. Spectrophotometer TS7600 is also widely used in the color quality control of various products. TS7600 is equipped with high-end color management software, which is connected to the computer to realize more function expansion. The instrument has stable performance, accurate color measurement and powerful function. It is widely used in plastic electronics, paint and coating, textile printing and dyeing, printing paper, automobile, medical treatment, cosmetics and food industries, as well as scientific research institutions and laboratories etc.

Model : TS7600
Optical Geometry :
Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle);
SCI (specular component included)/SCE (specular component excluded) ,excluded UV light source;
Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7;
Characteristic : Customized one aperture, It is used for precise color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries, and for fluorescent sample measurement.
Integrating Sphere Size : Φ40mm
Light Source : Combined full spectrum LED light source
Spectrophotometric Mode : Flat Grating
Sensor : Silicon photodiode array (double row 40 groups)
Wavelength Range : 400~700nm
Wavelength Interval : 10nm
Semiband Width : 10nm
Measured Reflectance Range : 0-200%
Measuring Aperture : Customized one aperture: MAV:Φ8mm/Φ10mm；SAV:Φ4mm/Φ5mm
Specular Component : SCI&SCE
Color Space : CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,Munsell(C/2)
Color Difference Formula : ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00
Other Colorimetric Index : WI(ASTM E313，CIE/ISO,AATCC,Hunter),
YI(ASTM D1925，ASTM 313), Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness,
Observer Angle : 2°/10°
Illuminant : D65,A,C,D50,F2(CWF),F7(DLF),F10(TPL5),F11(TL84),F12(TL83/U30)
Displayed Data : Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time : About 1.5s (Measure SCI & SCE about 3.2s)
Repeatability : Spectral reflectance: MAV/SCI, Standard deviation within 0.1% (400 nm to 700 nm: within 0.2%)
Chromaticity value: MAV/SCI, within ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error : MAV/SCI, Within ΔE*ab 0.2
(Average for 12 BCRA Series II color tiles)
Measurement Mode : Single Measurement, Average Measurement(2-99times)
Locating Method : Camera Locating,stabilizer cross position
Battery : 3.7V,5000mAh Li-ion battery, 6000 measurements within 8 hours
Illuminant Life Span : 5 years, more than 3 million times measurements
Displayed Data : 3.5-inch TFT color LCD, Capacitive Touch Screen
Data Port : USB
Data Storage : Standard 1000 Pcs, Sample 20000 Pcs
Language : Simplified Chinese, English, traditional Chinese
Operating Environment : 0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment : -20~50℃, 0~85%RH (no condensing)
Standard Accessory : Power Adapter, User Guide, PC Software(Download from office website), USB cable, White and Black Calibration Cavity, Protective Cover, Wrist strap, One aperture (8mm or 4mm)
Optional Accessory : Micro Printer, Powder Test Box
Dimension : L*W*H=129X76X217mm
Weight : Approx 600g
