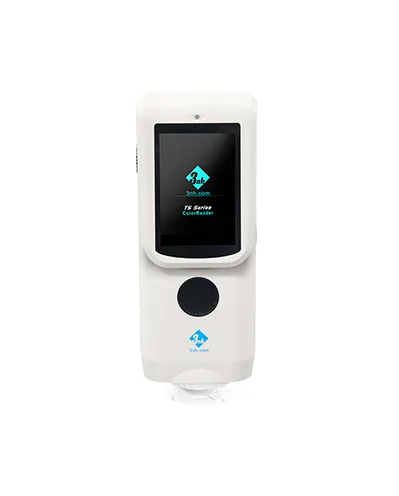

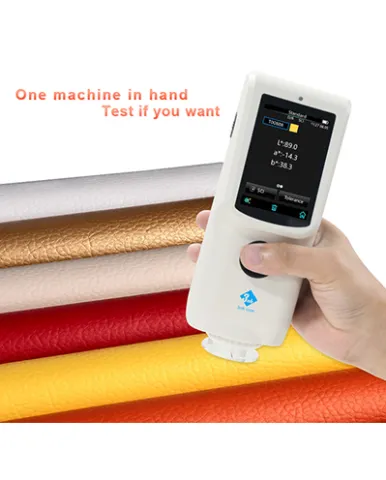

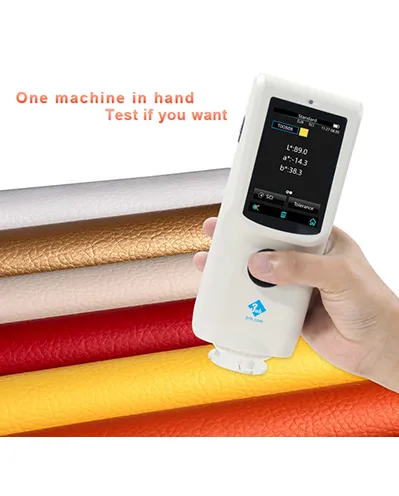

Spectrocolorreader – 3NH CR7

Category :
Colorimeter and Color Reader

Price :

Rp.26.480.000

Chat Us

DESCRIPTION
SPECIFICATION

CR7 realizes the two-in-one spectrophotometer and spectrocolorreader, easy to use and not expensive. It is a masterpiece that integrates high precision, high performance, and high cost performance. The CR7 (basic) is a portable spectrophotometer developed by 3nh using its own core technology of spectroscopy. It uses a built-in silicon photodiode array (dual-row 24 groups) sensor, an imported white board, and the repeatability ΔE*ab can be easily controlled within 0.1. CR7's powerful performance configuration and excellent inter-instrument error make color measurement more professional, while also ensuring the consistency of measurement data of multiple devices.

Model : CR7 (Basic)
Optical geometry :
D/8 (diffuse illumination, 8° direction reception)
SCI measurement : Comply with standard CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristics : Single measurement aperture for accurate color difference control in plastic and electronic, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries
Integrating sphere size : Φ40mm
Light source : Combined full-spectrum LED light source
Spectroscopic method : Planar grating
Sensor : Silicon photodiode arrays (dual row 24 groups)
Wavelength range : 400~700nm
Semiband Bandwidth : 10nm
Measurement range : L:0~100. Reflectivity: can test the reflectance at a specific wavelength specified by the user (default 550nm)
Measurement aperture : Single aperture：Φ8mm
Focusing method : Fixed Focus
Specular component : SCI
Color space : CIE LAB,XYZ,Yxy,LCh
Color difference formula : ΔE*ab, ΔE*00
Other colorimetric indexs : -
Observer angle : 10°
Illuminant : D65,A,F2(CWF)
Displayed data : Reflectivity(at 1 specific wavelengths specified by the user)chromaticity value, color difference value/graph, pass/fail result, color simulation, color offset
Display Accuracy : 0.1
Measurement time : Approx. 1.5s
Repeatability : Chromaticity value: MAV/SCI, ΔE*ab within 0.1 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument error : MAV/SCI, within ΔE*ab 0.4(Average for 12 BCRA Series II color tiles)
Measurement method : Single measurement, average measurement (2~99 times)
Locating method : Stabilizer locating
Battery power : Lithium battery, 6000 times in 8 hours
Illuminant life span : 5 years, more than 3 million times measurements
Display : TFT true color 3.5inch, capacitive touch screen
Data port : USB is for charging only, does not support quality control software
Data storage : 500 standard samples, 1,0000 samples
Language : Simplified Chinese, English, Traditional Chinese
Operating temperature range : 0~40℃, 0~85%RH (no condensation), altitude< 2000m
Storage temperature range : -20~50℃, 0~85%RH (no condensation)
Standard Accessories : Power adapter, data cable, manual, black and white calibration box, protective cover, wrist strap, single aperture: Ø8mm platform aperture
Optional Accessories : USB micro printer, powder test box,holder base
Size : LxWxH=81X71X214mm
Weight : About 460g
