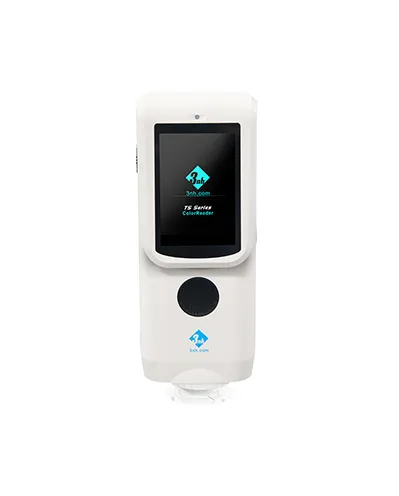

Spectrocolorreader – 3NH CR8

Category :
Colorimeter and Color Reader

Price :

Rp.30.230.000

Chat Us

DESCRIPTION
SPECIFICATION

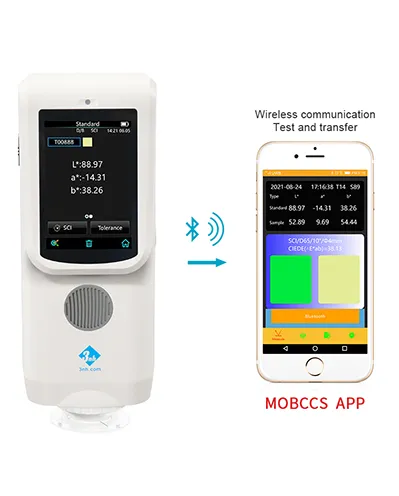

CR8 realizes the two-in-one spectrophotometer and spectrocolorreader, easy to use and not expensive. The CR8 (Professional) is a portable spectrophotometer developed by 3nh using its own core technology of spectroscopy. It uses a built-in silicon photodiode array (dual-row 24 groups) sensor, an imported white board, and the repeatability ΔE*ab can be easily controlled within 0.04. CR8's powerful performance configuration and excellent inter-instrument error make color measurement more professional, while also ensuring the consistency of measurement data of multiple devices. The CR8 spectrocolorreader takes into account the measurement speed and the convenience of operation at the same time. The color can be controlled through the PC-side software, and it can also be seamlessly connected to the mobile device through Bluetooth.It greatly expands the application space of the colorimeter, and makes the traditional colorimeter glow with a different application charm.

Model : CR8 (Professional)
Optical geometry : D/8 (diffuse illumination, 8° direction reception)
SCI measurement : Comply with standard CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristics : Customized single measurement aperture for accurate color difference control in plastic and electronic, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries
Integrating sphere size : Φ40mm
Light source : Combined full-spectrum LED light source
Spectroscopic method : Planar grating
Sensor : Silicon photodiode arrays (dual row 32 groups)
Wavelength range : 400~700nm
Wavelength interval : 10nm
Semiband Bandwidth : 10nm
Measurement range : L:0~120. Reflectivity: the instrument can test the reflectivity at 3 specific wavelengths specified by the user (default 440nm, 550nm, 600nm), APP can realize the full-band wavelength display
Measurement aperture : Single aperture: Φ8mm ( Φ4mm optional)
Focusing method : Fixed Focus
Specular component : SCI
Color space : CIE LAB,XYZ,Yxy,LCh
Color difference formula : ΔE*ab,ΔE*00
Other colorimetric indexs : Multiple colorimetric indexs are realized through APP
Observer angle : 10°
Illuminant : D65,A,F2(CWF)
Displayed data : Reflectivity(at 3 specific wavelengths specified by the user)chromaticity value, color difference value/graph, pass/fail result, color simulation, color offset
Display Accuracy : 0.01
Measurement time : Approx. 1.5s
Repeatability : Chromaticity value: MAV/SCI, ΔE*ab within 0.04 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument error : MAV/SCI, within ΔE*ab 0.35(Average for 12 BCRA Series II color tiles)
Measurement method : Single measurement, average measurement (2~99 times)
Locating method : Stabilizer locating
Battery power : Lithium battery, 6000 times in 8 hours
Illuminant life span : 5 years, more than 3 million times measurements
Display : TFT true color 3.5inch, capacitive touch screen
Data port : USB, Bluetooth® 5.0
Data storage : 500 standard samples, 1,0000 samples , APP mass storage
Language : Simplified Chinese, English, Traditional Chinese
Operating temperature range : 0~40℃, 0~85%RH (no condensation), altitude< 2000m
Storage temperature range : -20~50℃, 0~85%RH (no condensation)
Standard Accessories : Power adapter, data cable, manual, SQCX quality management software (official website download), black and white calibration box, protective cover, wrist strap, single aperture: Ø8mm (optional Ø4mm) platform aperture, MOBCCS APP (official website download)
Optional Accessories : USB micro printer, powder test box, Bluetooth micro printer,holder base
Size : LxWxH=81X71X214mm
Weight : About 460g
