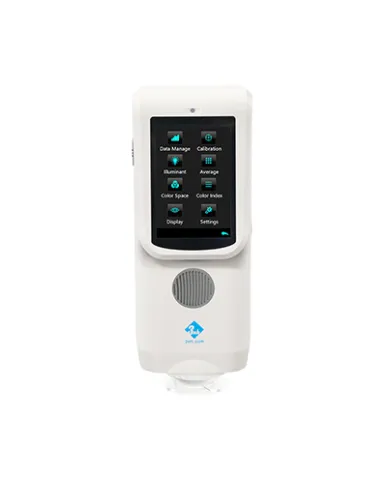

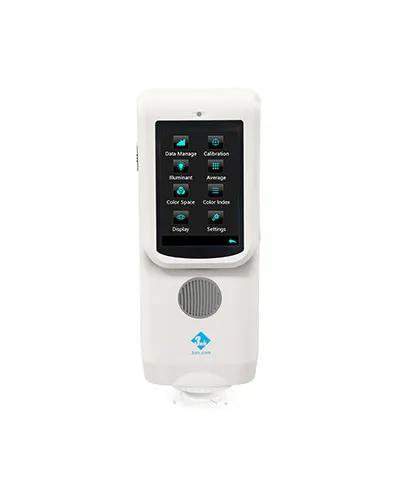

Spectrocolorreader – 3NH CR9

Category :
Colorimeter and Color Reader

Price :

Rp.61.400.000

Chat Us

DESCRIPTION
SPECIFICATION

CR9 realizes the two-in-one spectrophotometer and spectrocolorreader, easy to use and not expensive. It is a masterpiece that integrates high precision, high performance, and high cost performance. The CR9 (Advanced) is a portable spectrophotometer developed by 3nh using its own core technology of spectroscopy. It uses a built-in silicon photodiode array (dual-row 24 groups) sensor, an imported white board, and the repeatability ΔE*ab can be easily controlled within 0.03. CR9's powerful performance configuration and excellent inter-instrument error make color measurement more professional, while also ensuring the consistency of measurement data of multiple devices. The CR9 spectrocolorreader takes into account the measurement speed and the convenience of operation at the same time. The color can be controlled through the PC-side software, and it can also be seamlessly connected to the mobile device through Bluetooth.It greatly expands the application space of the colorimeter, and makes the traditional colorimeter glow with a different application charm.

Model : CR9 (Advanced)
Optical geometry : D/8 (diffuse illumination, 8° direction reception)
SCI/SCE measurement : Comply with standard CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristics : Dual measurement aperture, wider adaptability; used for accurate color measurement and quality control in plastic and electronic, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries
Integrating sphere size : Φ40mm
Light source : Combined full-spectrum LED light source, UV light source
Spectroscopic method : Planar grating
Sensor : Silicon photodiode arrays (dual row 32 groups)
Wavelength range : 400~700nm
Wavelength interval : 10nm
Semiband Bandwidth : 10nm
Measurement range : L:0~120. Reflectivity: 0~200%
Measurement aperture : Dual apertures：Φ8mm、Φ4mm
Focusing method : Optical Focus
Specular component : SCI&SCE
Color space : CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,DIN Lab9,DIN Lab99 Munsell(C/2)
Color difference formula : ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99
Other colorimetric indexs :
WI(ASTM E313, CIE/ISO,AATCC,Hunter). YI(ASTM D1925, ASTM 313),
Metamerism index Mt
staining fastness,color fastness,strength, opacity,color card search
Observer angle : 2°/10°
Illuminant D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Displayed data : Spectrogram/data, chromaticity value, color difference value/graph, pass/fail result, color simulation, color offset
Display Accuracy : 0.01
Measurement time : Approx. 1.5s (Measure SCI & SCE about 3.2s)
Repeatability : Chromaticity value: MAV/SCI, ΔE*ab within 0.03 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument error : MAV/SCI, within ΔE*ab 0.3 (Average for 12 BCRA Series II color tiles)
Measurement method : Single measurement, average measurement (2~99 times)

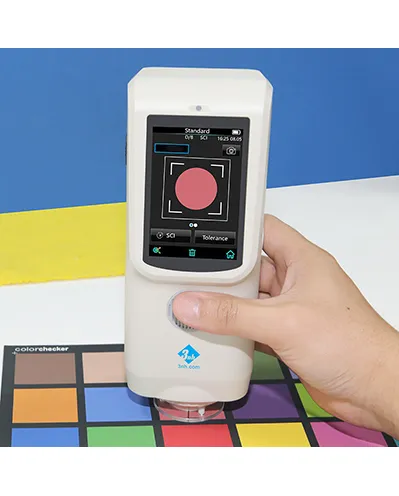

Locating method : Camera locating,stabilizer locating
Battery power : Lithium battery, 6000 times in 8 hours
Illuminant life span : 5 years, more than 3 million times measurements
Display : TFT true color 3.5inch, capacitive touch screen
Data port : USB, Bluetooth® 5.0
Data storage : 1000 standard samples, 30,000 samples (a piece of data can include SCI/SCE at the same time), APP mass storage
Language : Simplified Chinese, English, Traditional Chinese
Operating temperature range : 0~40℃, 0~85%RH (no condensation), altitude< 2000m
Storage temperature range : -20~50℃, 0~85%RH (no condensation)
Standard Accessories : Power adapter, data cable, manual, SQCX quality management software (official website download), black and white calibration box, protective cover, wrist strap, dual aperture: Ø8mm + Ø4mm platform aperture, MOBCCS APP (official website download)
Optional Accessories : USB micro printer, powder test box, Bluetooth micro printer,holder base
Size : LxWxH=81X71X214mm
Weight : About 460g
