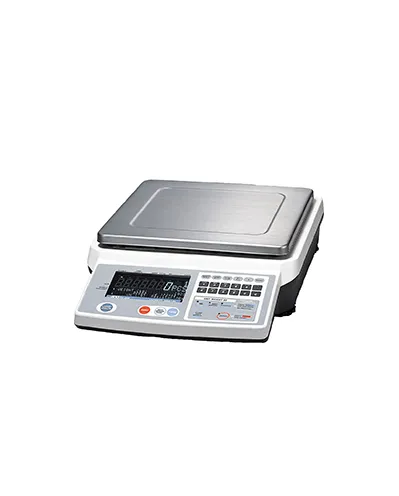

Counting scale FC Series from AND is one of high-resolution counting scales offer simple and easy operation. AND’s exclusive Automatic Count Accuracy Improvement combines the two most critical performance requirements of counting scales: count accuracy and operational effi ciency to correct errors caused by variation in unit weights. Bright VFD display simultaneously shows count, weight, comparator results, unit weight, ID #, and item code with up to 12 alphanumeric characters. LED prompting Navigation System for intuitive operator use virtually eliminates operator training time
Weighing Capacity k(g) : 1Kg Minimum Unit Weight : Normal Mode : 0.02g Fine Mode : 0.001g Display Resolution k(g) : 0.1g Max. Count Display : 1,000,000 Sample Size : 10 pieces (5, 25, 50, 100 or at random setting ) Non-linearity : 0.1g Repeatability (Standard Deviation) : 0.1g Span Drift : 20ppm /C (5C–35C) typ Operating Temperature and Humidity Range : –10C to 40C / 14F to 104F, 85%RH or lower (No condensation) Sensing Method : Strain Gauge Load Cell Internal Resolution : 1/1,000,000 Display : Vacuum Fluorescent Display Interface : RS-232C Standard Equipment (1ch) (When the optional FC-03i is used: 3ch, When the optional FC-04i is used: 2ch) Platform Size : 205 x 152 mm Power : AC adapter (100, 120, 220, 240VAC 50Hz/60Hz ) or internal battery (optional) Battery Operating Time of Approx. 10-hour (Standard Specifications) Dimensions : 330(W)x 462(D)x 107(H)mm Weight : Approx. 5.5kg
