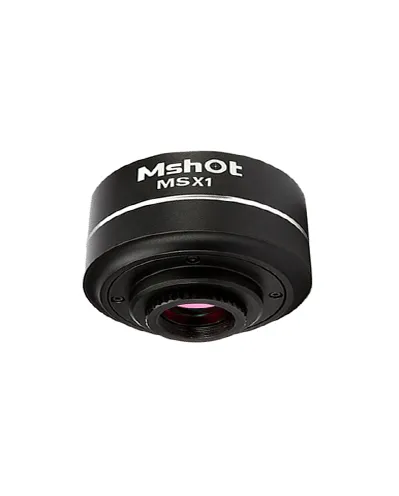

MSX1 is a super high resolution camera in 10 megapixels with high performance sensor, built-in Mshot new technology high performance ISP (Image Signal Processor) sensor, optimize microscope imaging capture ability and highly improved camera running speed, accurate reproduce observing target fine construction and true color, it is ideal for pathology diagnose, metallurgical analysis and stereo observation.
Spesifikasi: Item: MSX1 Effective resolution: 10 Megapixels (3816x2832) Sensor size: 1/1.7 inch Pixel size: 1.85μm × 1.85μm Frame rate: 36fps Scanning mode: Progressive / Continues Shutter type: Electronic rolling shutter Exposure time: 8μs ‒ 30s Effective gain: 1x ‒ 16x Spectral response: 380 ‒ 650nm A/D Convention: 12bit Image Cache: 64Mb Trigger : Software trigger Exposure: Manual / Auto/ Zone White balance: Auto / One push / Zone Image format: TIF,BMP,JPG,RAW Software data: DirectShow / TWAIN Operating OS: Windows XP 32bit,Windows 7/8/10 32/64bit Data port: USB3.0 B type,5Gbps Camera port: C-mount Power supply: USB 5V input Working surrounding: Working temperature 0 ‒ 40℃,working humidity:10% ‒ 90%RH Size: φ76mm*62mm
Decide for the next generation in microscope camera technology and therefore for connected microscopes in a digital classroom. This 5 megapixel color camera with CMOS sensor from ZEISS is designed to be the entry-level solution for education and teaching, without compromising on quality or affordability. With enhanced wireless capabilities, connecting to microscopes has never been easier – simply sync up via Wi-Fi and delve into the microscopic world with ease. Get ready to elevate your educational journey with this entry-level microscope camera.
This 20 megapixel color camera combines high sensor resolution, color accuracy and a large sensor size for the most challenging samples. Its live image is 30 frames per second, providing navigation with the PC that is as smooth as looking through the eye pieces. The small pixels allow the use of low magnifications for high speeds and large fields of view without losing resolution. Scan large areas faster than ever before due to its large 17.5 mm square sensor.
The Axiocam 820 mono 20 megapixel camera is equipped with a large 17.5 mm diagonal back-illuminated CMOS sensor having a peak quantum efficiency of 86%. In combination with its low readout noise, this camera is the perfect choice for imaging faint fluorescence signals in living or fixed samples. Its square sensor efficiently utilizes the optical field of view of the microscope for capturing more details. The dual USB 3.0 interface enables the highest acquisition speeds without sacrificing the robustness of a standardized interface.
