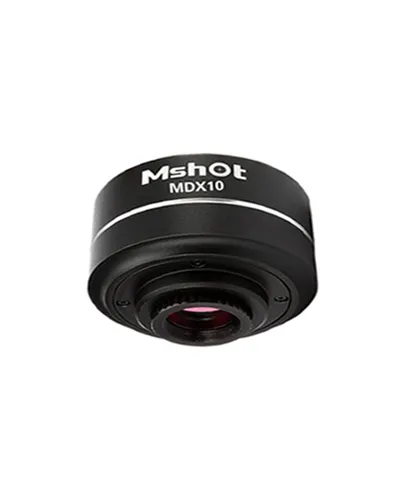

MDX10 is one of the high resolution microscope camera designed by Mshot, 20.0 megapixels high resolution to all routine microscope applications. The camera adopts big area 1 inch sensor size high quality sensor and USB3.0 interface, features with high frame rate to work smooth under 20MP full resolution. Optimization for microscope imaging to make the camera can accurate reproduce object tiny structure and real color. It is high effcient for microscope imaging of pathological diagnosis, metallurgical analysis, stereo observation and other routine applications.
Spesifikasi: Model: MDX10 Effective resolution: 20.0 Megapxiels Sensor size: 1 inch Pixel size: 2.4μm×2.4μm Frame rate and resolution: Resolution Frame rate 5480×3648 22 FPS 2736×1824 22 FPS Any size of ROI Scanning mode: Progressive / Continous Shutter type: Electronic rolling shutter Exposure time: 12μs‒10s Effective gain: 1‒16X Spectral response: 380‒650nm A/D convert: 12bit Image chache: 128Mb Exposure mode: Manual / Auto / Zone White balance: Auto / One push / Area Image format: TIF, BMP, JPG,RAW Software interface: DirectShow / TWAIN Operation OS: Windows XP 32 bit,Windows 7/8/10 32/64 bit Data port: USB3.0 B type data port,5Gb/s Camera adapter: C-mount adapter Power supply: USB 5V power supply Operating environment: Temp:0~50℃;humidity:10%~90%RH(No condensation) Shell dimension: Ø76×62mm
MD50 is a entry level microscope camera in USB2.0. With optimized white balance, more accuracy color reproduction and 32MB cache to store data, the camera is superior than traditional USB2.0 CMOS camera on speed and stability. It occupies less PC memory to achieve smooth working on low configuration PC, which is favorable to routine microscope applications. The camera work well with Directshow and TWAIN program, compatible SDK is affordable for secondary development.
MD50-T is a CMOS Camera with USB3.0 digital adapter. It is the first released USB3.0 digital camera for microscopy imaging of MSHOT. The camera adopts the USB 3.0 technology, which is highly expected in the microscopy imaging field. The technology highly improved performance of microscope camera. MD50-T is a good choice for entry level microscope users who prefer high speed and good resolution.
MS60 is one of the most popular microscope camera designed by Mshot, 6.3 megapixels is favourable to all routine microscope applications. The camera adopts high quality 1/1.8" sensor and USB3.0 interface, features with high frame rate, good color rendition and high sensitivity. Excellent image definition and color performance makes it an ideal camera used with microscope in the line of pathological diagnosis, polarized observation, metallurgical analysis, stereo observation, phase contrast, basic fluorescence and dark field.
