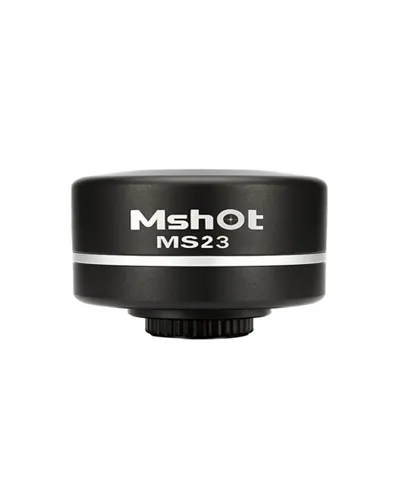

M23-H is a scientific CMOS camera development by MSHOT. It adopts large area Sony sensor in high quality. Equipment with USB3.0 data port, it offers wide field view, high sensitivity, high dynamic range and high frame rate. Makes it quite suitable for weak fluorescence, no matter use with epi fluorescence microscope or inverted fluorescence microscope. Also fit to microscopy applications of pathology and phase contrast.
Spesifikasi: Item: MS23-H Resolution & Frame rate: 1920X1200@ 160FPS 1920X1080@ 160FPS 960X600(SUM2)@160FPS Any size of ROI *SENSOR: 1/1.2” color Sony sensor *Effective resolution: 1920H×1200V (2.3MP) *Scanning mode: Progress scan *Pixel size: 5.86μm×5.86μm A/D convert: 8bit *Sensitivity: 2000mV-1/30s Accumulation *Spectral response: 380-1100nm Shutter type: Global shutter *Exposure time: 20μs‒42s Internal cache: 64MB Effective gain: 1-100X Trigger : Software Acquire mode: Continuous output *Exposure control: Manual/ Auto/Area *White balance: Manual/ One push/ Area Capture image mode: BMP,JPG,PNG,TIF Controllable programs: camera working speed, image size,capture mode,exposure time, gain, eliminate flash, GAMMA, contrast, RGB gain,saturation,black balance, sharpness *Support OS: Windows XP(32bit); Win7(32/64bit) WIN8(32bit/64bit),WIN10(32bit/64bit) *Software interface: TWAIN,DirectShow *Data interface: USB3.0 5GB/s Power Consumption: USB5V power supply(no external power circuit) Working temperature: 0~50℃ Working humidity: 10%-90%(no condensation) *Optical adapter: C-mount
MD50 is a entry level microscope camera in USB2.0. With optimized white balance, more accuracy color reproduction and 32MB cache to store data, the camera is superior than traditional USB2.0 CMOS camera on speed and stability. It occupies less PC memory to achieve smooth working on low configuration PC, which is favorable to routine microscope applications. The camera work well with Directshow and TWAIN program, compatible SDK is affordable for secondary development.
MD50-T is a CMOS Camera with USB3.0 digital adapter. It is the first released USB3.0 digital camera for microscopy imaging of MSHOT. The camera adopts the USB 3.0 technology, which is highly expected in the microscopy imaging field. The technology highly improved performance of microscope camera. MD50-T is a good choice for entry level microscope users who prefer high speed and good resolution.
MS60 is one of the most popular microscope camera designed by Mshot, 6.3 megapixels is favourable to all routine microscope applications. The camera adopts high quality 1/1.8" sensor and USB3.0 interface, features with high frame rate, good color rendition and high sensitivity. Excellent image definition and color performance makes it an ideal camera used with microscope in the line of pathological diagnosis, polarized observation, metallurgical analysis, stereo observation, phase contrast, basic fluorescence and dark field.
