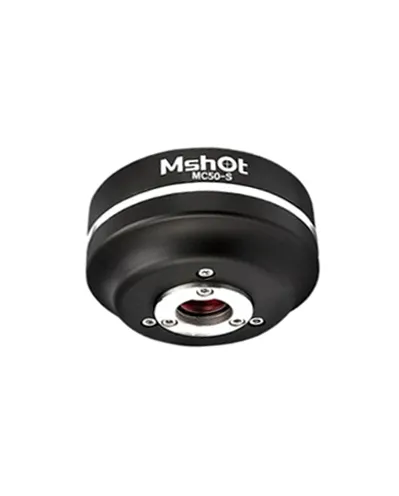

Use of 5.0 megapxiels Sony CMOS sensor, MC50-S offers high performance microscope color image. Imaging performance compatible to same sensor size Sony CCD camera. The camera equipment with global shutter allows the camera accurate tract and capture dynamic images, USB3.0 interface transfer data in high-speed, the features make sure MC50-S camera focus image clearly in time. It is a high performance digital camera compatible to bright field, phase contrast, polarizing and routine fluorescence.
Spesifikasi: Item: MC50-S Effective resolution: 5.0 Megapixels Sensor size: 2/3 inch Pixel size: 3.45μm × 3.45μm Resolution and frame rate: Resolution Frame rate 2448 × 2048 37.5FPS 1920 × 1080 56FPS 1224 × 1024(BIN2) 37.5FPS 1224 × 1024(SUM2) 37.5FPS 1224 × 1024(SKIP) 37.5FPS Any size of ROI
Item MC50-S Effective resolution 5.0 Megapixels Sensor size 2/3 inch Pixel size 3.45μm × 3.45μm Resolution and frame rate Resolution Frame rate 2448 × 2048 37.5FPS 1920 × 1080 56FPS 1224 × 1024(BIN2) 37.5FPS 1224 × 1024(SUM2) 37.5FPS 1224 × 1024(SKIP) 37.5FPS Any size of ROI Scanning mode: Progressive / Continues Shutter type: Global shutter Exposure time: 46μs ‒ 10s Effective gain: 1x ‒ 16x Spectral response: 380 ‒ 650nm A/D Convention: 12bit Image Cache: 64Mb Exposure: Manual / Auto/ Zone White balance: Auto / One push / Zone Image format: TIF,BMP,JPG,RAW Software data: DirectShow / TWAIN Operating OS: Windows XP 32bit,Windows 7/8/10 32/64bit Data port: USB3.0 B type,5Gbps Camera port: C-mount Power supply: USB 5V input Working surrounding: Working temperature 0 ‒ 50℃,working humidity:10% ‒ 90%RH
MD50 is a entry level microscope camera in USB2.0. With optimized white balance, more accuracy color reproduction and 32MB cache to store data, the camera is superior than traditional USB2.0 CMOS camera on speed and stability. It occupies less PC memory to achieve smooth working on low configuration PC, which is favorable to routine microscope applications. The camera work well with Directshow and TWAIN program, compatible SDK is affordable for secondary development.
MD50-T is a CMOS Camera with USB3.0 digital adapter. It is the first released USB3.0 digital camera for microscopy imaging of MSHOT. The camera adopts the USB 3.0 technology, which is highly expected in the microscopy imaging field. The technology highly improved performance of microscope camera. MD50-T is a good choice for entry level microscope users who prefer high speed and good resolution.
MS60 is one of the most popular microscope camera designed by Mshot, 6.3 megapixels is favourable to all routine microscope applications. The camera adopts high quality 1/1.8" sensor and USB3.0 interface, features with high frame rate, good color rendition and high sensitivity. Excellent image definition and color performance makes it an ideal camera used with microscope in the line of pathological diagnosis, polarized observation, metallurgical analysis, stereo observation, phase contrast, basic fluorescence and dark field.
