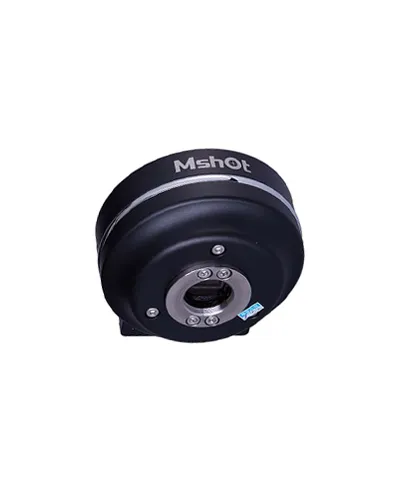

MSH05 is the latest launched monochrome sCMOS microscope camera, big sensor size 3/4”offers high sensitivity, low noise and high dynamic range, the characteristics combine with 5 megapixels high resolution makes the camera is ideal for scientific laboratory research, fluorescence signal capture and related weak light microscope imaging.
Spesifikasi: Item: MSH05 Effective resolution: 500 Megapixels Sensor size: 4/3 inch Pixel size: 6.6μm × 6.6μm Resolution and frame rate: Resolution Frame rate 2560 × 1938 12.5FPS 880 × 640 60FPS Any size of ROI Scanning mode: Progress / Continues Shutter type: Electronic shutter Exposure time: 40μs ‒ 10s Effective gain: 1x ‒ 60x Spectral response: 380 ‒ 1000nm A/D Conversion :12bit Image cache: 64Mb Trigger mode: Software trigger Exposure: Manual / Auto / Zone White balance: Manual / One push / Zone Image format: TIF,BMP,JPG,RAW Software port: DirectShow / TWAIN Operation OS: Windows XP 32bit,Windows 7/8/10 32/64bit Data port: USB3.0 B type,5Gb/s Camera port: C-mount
MD50 is a entry level microscope camera in USB2.0. With optimized white balance, more accuracy color reproduction and 32MB cache to store data, the camera is superior than traditional USB2.0 CMOS camera on speed and stability. It occupies less PC memory to achieve smooth working on low configuration PC, which is favorable to routine microscope applications. The camera work well with Directshow and TWAIN program, compatible SDK is affordable for secondary development.
MD50-T is a CMOS Camera with USB3.0 digital adapter. It is the first released USB3.0 digital camera for microscopy imaging of MSHOT. The camera adopts the USB 3.0 technology, which is highly expected in the microscopy imaging field. The technology highly improved performance of microscope camera. MD50-T is a good choice for entry level microscope users who prefer high speed and good resolution.
MS60 is one of the most popular microscope camera designed by Mshot, 6.3 megapixels is favourable to all routine microscope applications. The camera adopts high quality 1/1.8" sensor and USB3.0 interface, features with high frame rate, good color rendition and high sensitivity. Excellent image definition and color performance makes it an ideal camera used with microscope in the line of pathological diagnosis, polarized observation, metallurgical analysis, stereo observation, phase contrast, basic fluorescence and dark field.
