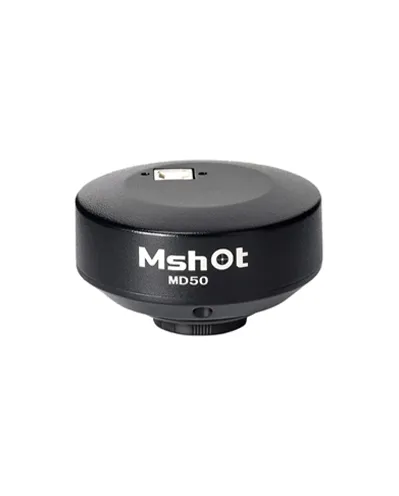

MD50 is a entry level microscope camera in USB2.0. With optimized white balance, more accuracy color reproduction and 32MB cache to store data, the camera is superior than traditional USB2.0 CMOS camera on speed and stability. It occupies less PC memory to achieve smooth working on low configuration PC, which is favorable to routine microscope applications. The camera work well with Directshow and TWAIN program, compatible SDK is affordable for secondary development.
Spesifikasi: Item: MD50 Resolution: 5.0MP Sensor: 1/2.5 inch Pixel size: 2.2μm×2.2μm Resolution and frame rate: 2592×1944:7 FPS 2048×1536(ROI):10.4 FPS 1920×1080(ROI):15.4FPS 1280×960(SUM):17.2 FPS 1280×960(BIN):17.2 FPS 640×480(SUM):26.7 FPS 640×480(BIN):26.7 FPS Any size of ROI Exposure time: 59us ~3s Effective gain: 1X~8X Spectral range: 380nm ~650nm Exposure mode: Electronic rolling shutter A / D convert: 8Bit Exposure function: Manual/ Auto/ Area White balance: Auto/ One push/ Area Image format: TIF,BMP,JPG,RAW Image cache: 32MB Software data: DirectShow / TWAIN Operation system: Windows XP;Windows 7/8/10 32/64Bit Data port: USB2.0 B type,480Mb/s Power supply: USB 5V power on,work1W,standby0.45W Working distance: Working temperature:0~50℃, humidity:10%~90%RH(no condensation) Power supply: USB 5V Working distance: Working temperature :0~50℃ ,Working humidity:10%~90%RH Shell size: Ø76*62mm
Decide for the next generation in microscope camera technology and therefore for connected microscopes in a digital classroom. This 5 megapixel color camera with CMOS sensor from ZEISS is designed to be the entry-level solution for education and teaching, without compromising on quality or affordability. With enhanced wireless capabilities, connecting to microscopes has never been easier – simply sync up via Wi-Fi and delve into the microscopic world with ease. Get ready to elevate your educational journey with this entry-level microscope camera.
This 20 megapixel color camera combines high sensor resolution, color accuracy and a large sensor size for the most challenging samples. Its live image is 30 frames per second, providing navigation with the PC that is as smooth as looking through the eye pieces. The small pixels allow the use of low magnifications for high speeds and large fields of view without losing resolution. Scan large areas faster than ever before due to its large 17.5 mm square sensor.
The Axiocam 820 mono 20 megapixel camera is equipped with a large 17.5 mm diagonal back-illuminated CMOS sensor having a peak quantum efficiency of 86%. In combination with its low readout noise, this camera is the perfect choice for imaging faint fluorescence signals in living or fixed samples. Its square sensor efficiently utilizes the optical field of view of the microscope for capturing more details. The dual USB 3.0 interface enables the highest acquisition speeds without sacrificing the robustness of a standardized interface.
