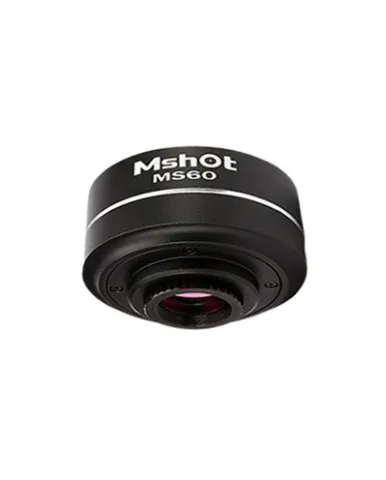

MS60 is one of the most popular microscope camera designed by Mshot, 6.3 megapixels is favourable to all routine microscope applications. The camera adopts high quality 1/1.8" sensor and USB3.0 interface, features with high frame rate, good color rendition and high sensitivity. Excellent image definition and color performance makes it an ideal camera used with microscope in the line of pathological diagnosis, polarized observation, metallurgical analysis, stereo observation, phase contrast, basic fluorescence and dark field.
Spesifikasi: Item: MS60 Effective pixels: 6.3 megapixels resolution: 3072*2048 Sensor size: 1/1.8 inches Pixel size: 2.4 um*2.4 um Frame rate: 71FPS:3072x2048 89FPS:1536×1024(BIN2) 166FPS:1920×1080(1080P) 178FPS:1280×720(720P) Any size ROI Exposure time: 6us ~ 7s Effective gain: 1~16X Spectral response 380nm ~ 650nm Scanning mode: Progress scan / continuous output Trigger mode: Soft trigger Shutter: Electronic rolling shutter A / D conversion: 12Bit Exposure: Manual/Auto/Area exposure White balance: Manual/One push/Area Image format: TIF,BMP,JPG,RAW Image Cache: 128MB Soft ware Interface: DirectShow / TWAIN Operating system: Windows XP 32Bit, Windows 7/8/10 32/64Bit Data interface: USB3.0 5Gbps B type interface Power supply: USB 5Vpower supply Operating environment: Temp:0~50℃;humidity:10%~90%RH(No condensation) Size: 76mm*62mm
MD50 is a entry level microscope camera in USB2.0. With optimized white balance, more accuracy color reproduction and 32MB cache to store data, the camera is superior than traditional USB2.0 CMOS camera on speed and stability. It occupies less PC memory to achieve smooth working on low configuration PC, which is favorable to routine microscope applications. The camera work well with Directshow and TWAIN program, compatible SDK is affordable for secondary development.
MD50-T is a CMOS Camera with USB3.0 digital adapter. It is the first released USB3.0 digital camera for microscopy imaging of MSHOT. The camera adopts the USB 3.0 technology, which is highly expected in the microscopy imaging field. The technology highly improved performance of microscope camera. MD50-T is a good choice for entry level microscope users who prefer high speed and good resolution.
MS60 is one of the most popular microscope camera designed by Mshot, 6.3 megapixels is favourable to all routine microscope applications. The camera adopts high quality 1/1.8" sensor and USB3.0 interface, features with high frame rate, good color rendition and high sensitivity. Excellent image definition and color performance makes it an ideal camera used with microscope in the line of pathological diagnosis, polarized observation, metallurgical analysis, stereo observation, phase contrast, basic fluorescence and dark field.
