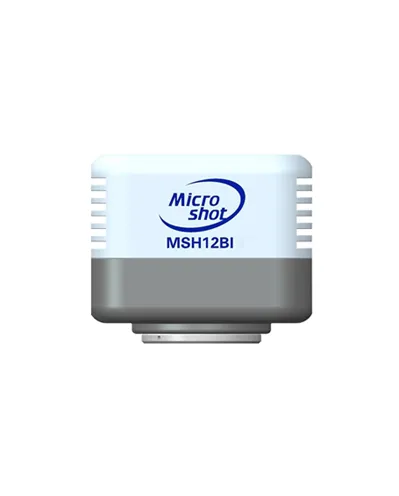

MSH12-BI is a high sensitivity camera with back illuminating technology, it achieves the most possibility to detect signal, keep high frame rate and wide dynamic rang. Big size 1.2 inch sensor offers wider field of view and and better quality image. This camera is good to use for life science and material analysis, such as weak light imaging, fluorescence imaging, spectral imaging and so on.
Spesifikasi: Item: MSH12-BI Type: Monochrome Effective megapixels: 4.2 megapixels Sensor size: 1.2inch Pixel size: 6.5 μm × 6.5 μm Resolution and frame rate: 2048 × 2048 22fps 2048 x 1500 29fps Any size of ROI Scanning mode: Progress scan/Continuous output Shutter type: Electronic rolling shutter Exposure time: 22μs ~ 120s Effective gain: 1~16X Exposure response: 200nm ~ 1100nm A/D converter: 12Bit Cooling mode: Peltier cooling mode, lower than room temperature 15°C Exposure function: Manual exposure / Auto exposure / Zone exposure Image format: TIF, BMP,JPG,RAW Image cache: 128MB Trigger mode: Software trigger Software data: DirectShow / TWAIN Operating system: Windows XP 32Bit, Windows 7/8/10 32/64Bit Data port: USB3.0 B type port,5Gbps Camera port: Standard C mount Power supply: USB 5V electrical supply Working temperature: Working temperature:0~50℃;Working humidity:10%~85%RH Size: 113.2 x 105 x 92.6 mm
MD50 is a entry level microscope camera in USB2.0. With optimized white balance, more accuracy color reproduction and 32MB cache to store data, the camera is superior than traditional USB2.0 CMOS camera on speed and stability. It occupies less PC memory to achieve smooth working on low configuration PC, which is favorable to routine microscope applications. The camera work well with Directshow and TWAIN program, compatible SDK is affordable for secondary development.
MD50-T is a CMOS Camera with USB3.0 digital adapter. It is the first released USB3.0 digital camera for microscopy imaging of MSHOT. The camera adopts the USB 3.0 technology, which is highly expected in the microscopy imaging field. The technology highly improved performance of microscope camera. MD50-T is a good choice for entry level microscope users who prefer high speed and good resolution.
MS60 is one of the most popular microscope camera designed by Mshot, 6.3 megapixels is favourable to all routine microscope applications. The camera adopts high quality 1/1.8" sensor and USB3.0 interface, features with high frame rate, good color rendition and high sensitivity. Excellent image definition and color performance makes it an ideal camera used with microscope in the line of pathological diagnosis, polarized observation, metallurgical analysis, stereo observation, phase contrast, basic fluorescence and dark field.
