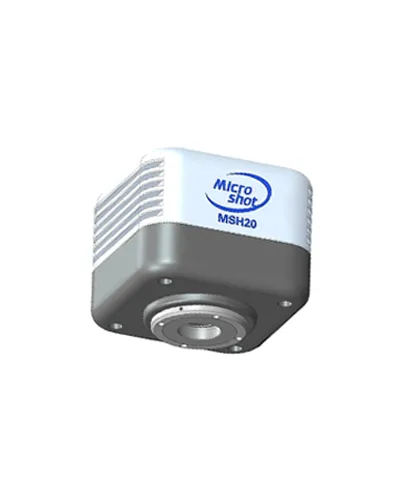

MSH20 is a monochrome camera in super sensitivity, it has 95% QE quantum efficiency to get faster speed and excellent noise radio, spectral response is from 200nm to 1300n, optional with cooling, all the features make the camera is superior on microscope imaging, and outstanding when applied to life science, spectral analysis, astronomical observation and other advanced technology research area.
Spesifikasi: tem: MSH20 Type: Monochrome Effective megapixels: 4.2 megapixels Sensor size: 2 inch Pixel size: 11 μm × 11 μm Resolution and frame rate: 2048 × 2048 24fps Any size of ROI Exposure time: 0.021ms ~ 20s Dynamic range: >93dB Full well capacity: 93Ke- Read out noise: 1.47e- Spectral wavelength: 200nm ~ 1100nm Shutter type: Electronic rolling Shutter Cooling mode (optional): Semiconductor cooling mode/ Not cooling Exposure function: Manual exposure / Auto exposure / Zone exposure Image format: TIF, BMP,JPG,RAW Software data: DirectShow / TWAIN Operating system: Windows XP 32Bit, Windows 7/8/10 32/64Bit Data port: USB3.0 B type port,5Gbps Camera port: Standard C mount Power supply: USB 5V electrical supply Working temperature: Working temperature:0~50℃;Working humidity:10%~85%RH Size: 105 x 105 x 92 mm
Decide for the next generation in microscope camera technology and therefore for connected microscopes in a digital classroom. This 5 megapixel color camera with CMOS sensor from ZEISS is designed to be the entry-level solution for education and teaching, without compromising on quality or affordability. With enhanced wireless capabilities, connecting to microscopes has never been easier – simply sync up via Wi-Fi and delve into the microscopic world with ease. Get ready to elevate your educational journey with this entry-level microscope camera.
This 20 megapixel color camera combines high sensor resolution, color accuracy and a large sensor size for the most challenging samples. Its live image is 30 frames per second, providing navigation with the PC that is as smooth as looking through the eye pieces. The small pixels allow the use of low magnifications for high speeds and large fields of view without losing resolution. Scan large areas faster than ever before due to its large 17.5 mm square sensor.
The Axiocam 820 mono 20 megapixel camera is equipped with a large 17.5 mm diagonal back-illuminated CMOS sensor having a peak quantum efficiency of 86%. In combination with its low readout noise, this camera is the perfect choice for imaging faint fluorescence signals in living or fixed samples. Its square sensor efficiently utilizes the optical field of view of the microscope for capturing more details. The dual USB 3.0 interface enables the highest acquisition speeds without sacrificing the robustness of a standardized interface.
