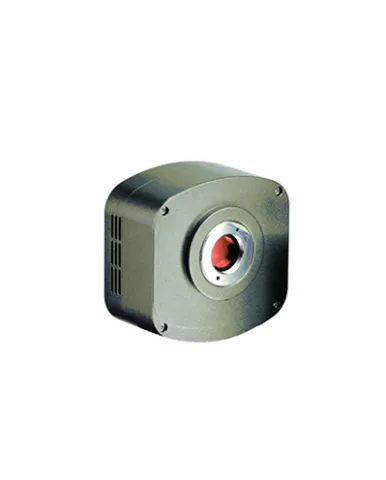

BUC4 series CCD digital cameras adopt scientific CCD sensors to capture images and videos with high sensitivity and low image noise. The ISCapture software has powerful camera control, image management, image processing and measurement function. With rational design, reliable hardware and powerful software, the BUC4 series CCD cameras can be your best assistant for daily work and scientific research.
Image Sensor : 1/2”, color 1.4MP Sony CCD sensor, ICX205AK Pixel Size : 4.65μm×4.65μm G Sensitive : 400mV Max Resolution : 1360H × 1024V Frame Rate : 15fps@1352×1024 Dynamic Range : 65dB 65dB SNR : 42dB Full Well Capacity : 15000e Readout Noise : 8.4e Quantum Efficiency : - Exposure Time : 1ms~60mins Scan Mode : Progressive Scan Shutter : Electronic rolling shutter A/D Conversion : 12 bit White Balance : Auto / Manual Exposure Control : Auto / Manual Binning Mode : 2*2/4*4 Low-speed Readout : Yes Lens Interface : Standard C-mount Filter : RGB filter is standard for color models, 100% glass filter is standard for mono models Image Output : USB2.0, 480Mb/s Power Supply : USB2.0, 500mW Parameter Controlling : Imagine size, bright, gain, exposure time, RGB Software Function : Image display, image and video capture, image processing and measurement Operation System : Support Windows XP / Vista / 7 / 8 / Mac / Linux Operation System Working Temperature : 0°C~60°C Storage Temperature : -20°C~70°C Working Humidity : 45%-85% Dimension & Weight : 108mm×105.5mm×63.8mm (length × width × height), 680g Package : Digital camera(C-mount), 1.8 meters USB cable, CD(Driver, software, Instruction Manual, SDK)
Decide for the next generation in microscope camera technology and therefore for connected microscopes in a digital classroom. This 5 megapixel color camera with CMOS sensor from ZEISS is designed to be the entry-level solution for education and teaching, without compromising on quality or affordability. With enhanced wireless capabilities, connecting to microscopes has never been easier – simply sync up via Wi-Fi and delve into the microscopic world with ease. Get ready to elevate your educational journey with this entry-level microscope camera.
This 20 megapixel color camera combines high sensor resolution, color accuracy and a large sensor size for the most challenging samples. Its live image is 30 frames per second, providing navigation with the PC that is as smooth as looking through the eye pieces. The small pixels allow the use of low magnifications for high speeds and large fields of view without losing resolution. Scan large areas faster than ever before due to its large 17.5 mm square sensor.
The Axiocam 820 mono 20 megapixel camera is equipped with a large 17.5 mm diagonal back-illuminated CMOS sensor having a peak quantum efficiency of 86%. In combination with its low readout noise, this camera is the perfect choice for imaging faint fluorescence signals in living or fixed samples. Its square sensor efficiently utilizes the optical field of view of the microscope for capturing more details. The dual USB 3.0 interface enables the highest acquisition speeds without sacrificing the robustness of a standardized interface.
