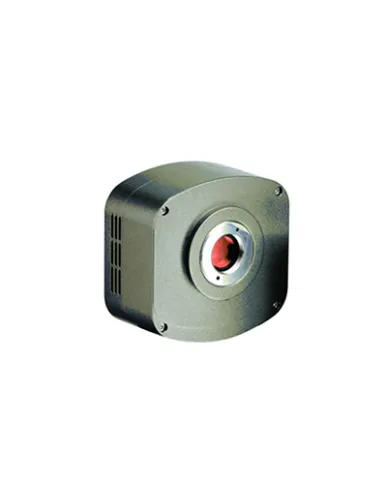

BUC4 series CCD digital cameras adopt scientific CCD sensors to capture images and videos with high sensitivity and low image noise. The ISCapture software has powerful camera control, image management, image processing and measurement function. With rational design, reliable hardware and powerful software, the BUC4 series CCD cameras can be your best assistant for daily work and scientific research.
Image Sensor : 2/3”, color 5.0MP Sony CCD sensor, ICX282AQ Pixel Size : 3.4μm×3.4μm G Sensitive : 280mV Max Resolution : 2580H×1944V Frame Rate : 3fps@2568×1912 - 12fps@1280×952 - 15fps@636×472 Dynamic Range : 63.2dB SNR : 41dB Full Well Capacity : 12000e Readout Noise : 10e Quantum Efficiency : 88% @610nm Red - 100% @530nm Green - 96% @460nm Blue Exposure Time : 1ms~20mins Scan Mode : Progressive Scan Shutter : Electronic rolling shutter A/D Conversion : 12 bit White Balance : Auto / Manual Exposure Control : Auto / Manual Binning Mode : 2*2/4*4 Low-speed Readout : Yes Lens Interface : Standard C-mount Filter : RGB filter is standard for color models, 100% glass filter is standard for mono models Image Output : USB2.0, 480Mb/s Power Supply : USB2.0, 500mW Parameter Controlling : Imagine size, bright, gain, exposure time, RGB Software Function : Image display, image and video capture, image processing and measurement Operation System : Support Windows XP / Vista / 7 / 8 / Mac / Linux Operation System Working Temperature : 0°C~60°C Storage Temperature : -20°C~70°C Working Humidity : 45%-85% Dimension & Weight : 108mm×105.5mm×63.8mm (length × width × height), 680g Package : Digital camera(C-mount), 1.8 meters USB cable, CD(Driver, software, Instruction Manual, SDK)
MD50 is a entry level microscope camera in USB2.0. With optimized white balance, more accuracy color reproduction and 32MB cache to store data, the camera is superior than traditional USB2.0 CMOS camera on speed and stability. It occupies less PC memory to achieve smooth working on low configuration PC, which is favorable to routine microscope applications. The camera work well with Directshow and TWAIN program, compatible SDK is affordable for secondary development.
MD50-T is a CMOS Camera with USB3.0 digital adapter. It is the first released USB3.0 digital camera for microscopy imaging of MSHOT. The camera adopts the USB 3.0 technology, which is highly expected in the microscopy imaging field. The technology highly improved performance of microscope camera. MD50-T is a good choice for entry level microscope users who prefer high speed and good resolution.
MS60 is one of the most popular microscope camera designed by Mshot, 6.3 megapixels is favourable to all routine microscope applications. The camera adopts high quality 1/1.8" sensor and USB3.0 interface, features with high frame rate, good color rendition and high sensitivity. Excellent image definition and color performance makes it an ideal camera used with microscope in the line of pathological diagnosis, polarized observation, metallurgical analysis, stereo observation, phase contrast, basic fluorescence and dark field.
