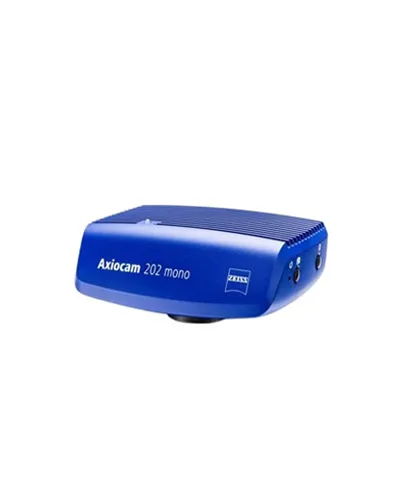

Axiocam 202 mono is your 2 megapixel monochrome microscope camera with automatic functions for routine fluorescence applications. With this CMOS sensor camera you can easily acquire monochrome images in stand-alone mode with no need of a PC. Since the camera automatically adjusts the exposure time you only need to press the snap button to capture and store your fluorescence images on a USB flash drive.
Spesifikasi: Sensor type: Sony CMOS image sensor mono, Global Shutter Sensor size: Image diagonal 13 mm, equivalent to 1/1.23” (11.25 mm × 6.33 mm) Pixel count: 1920 (H) × 1080 (V) = 2 Megapixel, Full HD Pixel size: 5.86 µm × 5.86 µm Bit depth: 8 bit/ pixel or 12 bit/ pixel Exposure range: 0.3ms up to 2s Gain: 1× – 16× adjustable Frame rate: HDMI: 30 fps Ethernet: 30 fps USB 3.0: up to 30 fps Cooling system: Passive cooling Spectral sensitivity: Approx. 400 nm – 1000 nm, protection glass (coated) Interface: HDMI, USB 3.0 Type C, Ethernet, Micro-D Wi-Fi compatibility: Via USB Wi-Fi adapter and router Software: On Screen Display (OSD) for stand-alone operation Labscope v2.9 (win), v2.8.3 (iOS) and higher ZEN (blue edition) v3.0 and higher TWAIN drive Image enhancement functions: Active denoising, active sharpening Automatic features: Automatic exposure and gain regulation at full HD resolution (1080p) Fast live image under low light conditions
Decide for the next generation in microscope camera technology and therefore for connected microscopes in a digital classroom. This 5 megapixel color camera with CMOS sensor from ZEISS is designed to be the entry-level solution for education and teaching, without compromising on quality or affordability. With enhanced wireless capabilities, connecting to microscopes has never been easier – simply sync up via Wi-Fi and delve into the microscopic world with ease. Get ready to elevate your educational journey with this entry-level microscope camera.
This 20 megapixel color camera combines high sensor resolution, color accuracy and a large sensor size for the most challenging samples. Its live image is 30 frames per second, providing navigation with the PC that is as smooth as looking through the eye pieces. The small pixels allow the use of low magnifications for high speeds and large fields of view without losing resolution. Scan large areas faster than ever before due to its large 17.5 mm square sensor.
The Axiocam 820 mono 20 megapixel camera is equipped with a large 17.5 mm diagonal back-illuminated CMOS sensor having a peak quantum efficiency of 86%. In combination with its low readout noise, this camera is the perfect choice for imaging faint fluorescence signals in living or fixed samples. Its square sensor efficiently utilizes the optical field of view of the microscope for capturing more details. The dual USB 3.0 interface enables the highest acquisition speeds without sacrificing the robustness of a standardized interface.
